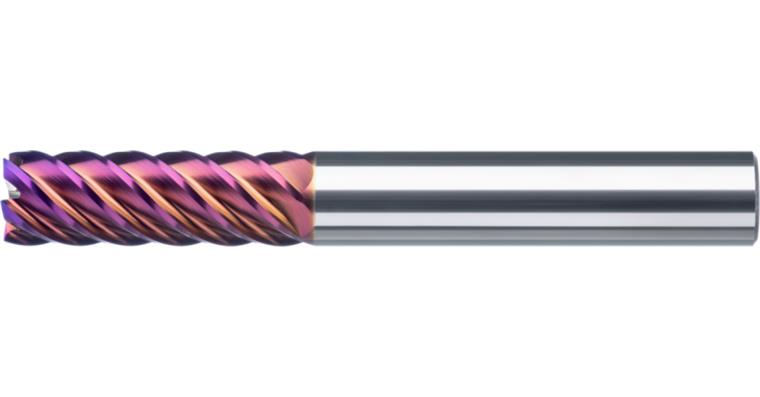

ATORN solid carbide multi-tooth mill long TiAlSiN 16x48x110 mm

ATORN solid carbide multi-tooth mill long TiAlSiN 16x48x110 mm

ATORN solid carbide multi-tooth mill long TiAlSiN 16x48x110 mm
Item no: 1016784 117

Online price:

Available in 6-8 working days.

Application
Multi-tooth mills for circumferential, ultra-fine finish cutting and semi-rough cutting in materials up to 65 HRC.

Execution
  • long version
  • Cutting material, Ultra Micro fine grain
  • Centre cutting
  • HA shaft in line with DIN 6535
  • Clearance
  • type H
  • With RockTec PRO coating

Advantage
  • optimum chip removal and temperature resistance
  • Optimised geometry for machining hard materials
  • maximum service life thanks to RockTec PRO coating


Brand: ATORN
Cutting material: SC
Surface: RockTec PRO
Type: H
Number of cutting edges (Z): 8 PCS
Twist angle: 45°
Tool holding device: HA parallel shank
Construction length: Long
Cutting edge diameter: 16 mm
Cutting edge length: 48 mm
Length: 110 mm
Shank diameter: 16 mm
fz hard 65 HRC: 0,088 mm
Overall stainless steel suitability: 3
fitness not iron total: 3
fitness Titan/Nickel/Super total: 3

ATORN-No.: 11264079

EAN no.: 4050293653083

Product Datasheet Datasheet cutting values
