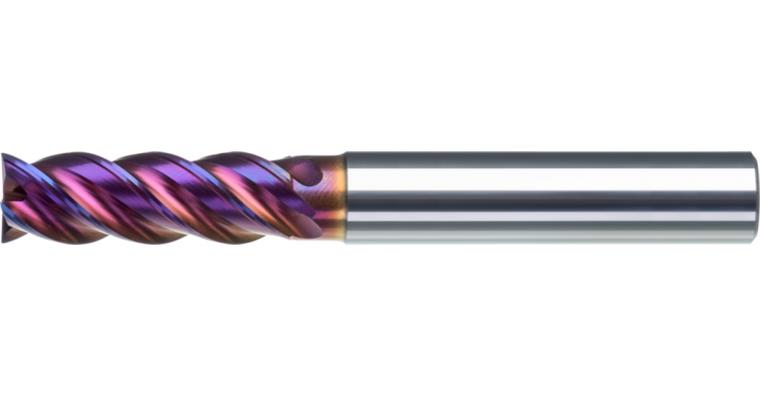

ATORN RockTec PRO HPC end mill, long, KR 16x48x55x108 mm T=4 HA r=0.3

ATORN RockTec PRO HPC end mill, long, KR 16x48x55x108 mm T=4 HA r=0.3

ATORN RockTec PRO HPC end mill, long, KR 16x48x55x108 mm T=4 HA r=0.3
Item no: 1016781 916

Online price:

Still in stock: 4

Application
HPC end mill in long version for machining materials up to 65 HRC, e.g. in die and mould making. Optimal application in trochoidal milling and in edge, corner and groove machining.

Execution
  • Ultra Micro fine grain cutting material
  • Cutting edge finish
  • HA shank in line with DIN 6535
  • with clearance
  • unequal cutting edge pitch
  • optimised cutting edge design
  • Type H
  • With RockTec PRO coating

Advantage
  • optimum chip removal and temperature resistance
  • Optimised geometry for machining hard materials
  • maximum service life due to RockTec PRO coating
  • ideal for static and dynamic trochoidal milling


Brand: ATORN
Cutting material: SC
Surface: RockTec PRO
Type: H
Number of cutting edges (Z): 4 PCS
Twist angle: 45°
Tool holding device: HA parallel shank
Construction length: Long
Cutting edge diameter: 16 mm
Cutting edge length: 48 mm
Clearance length: 55 mm
Length: 108 mm
Clearance diameter: 15 mm
Shank diameter: 16 mm
fz hard 65 HRC: 0,092 mm
Overall stainless steel suitability: 3
fitness not iron total: 3
fitness Titan/Nickel/Super total: 3

ATORN-No.: 11264648

EAN no.: 4066107031992

Product Datasheet Datasheet cutting values
