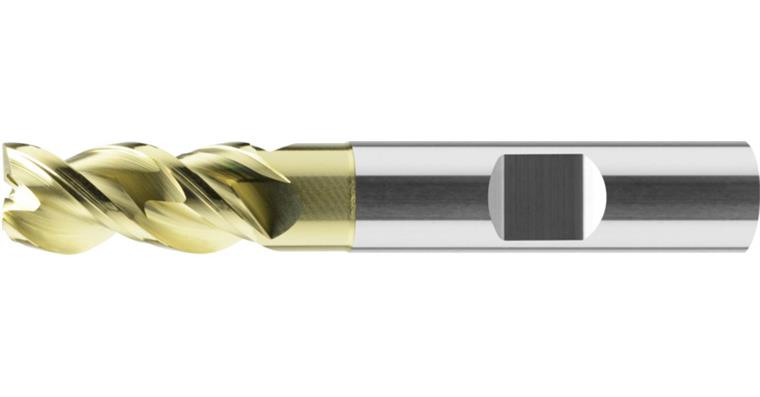

SC HPC roughing cutt. IC ZRN 43/47° norm. w.clearance HB shank T=3 dia. 20x104mm

SC HPC roughing cutt. IC ZRN 43/47° norm. w.clearance HB shank T=3 dia. 20x104mm

SC HPC roughing cutt. IC ZRN 43/47° norm. w.clearance HB shank T=3 dia. 20x104mm
Item no: 1016758 620

Online price:

Still in stock: 2

Application
For roughing with the highest standards.

Execution
  • Special edge processing
  • Robust roughing cutter with reinforced core
  • Polished chip spaces

Advantage
  • Titanium-free ZrN coating for best sliding properties developed for aluminium processing
  • Maximum machining performance and unbeatable surface quality


Brand: LIZZARD
Material to be processed: Aluminium | Copper
Cutting edge diameter: 20 mm
Cutting edge length: 41 mm
Clearance length: 52 mm
Length: 104 mm
Clearance diameter: 19,5 mm
Shank diameter: 20 mm
Edge protection chamfer length: 0,2 mm
Number of cutting edges (Z): 3 PCS
Twist angle: 43° | 47°
Type: HPC W
Construction length: Normal
Cutting direction: Right-hand cutting
fz aluminium: 0,135 mm
