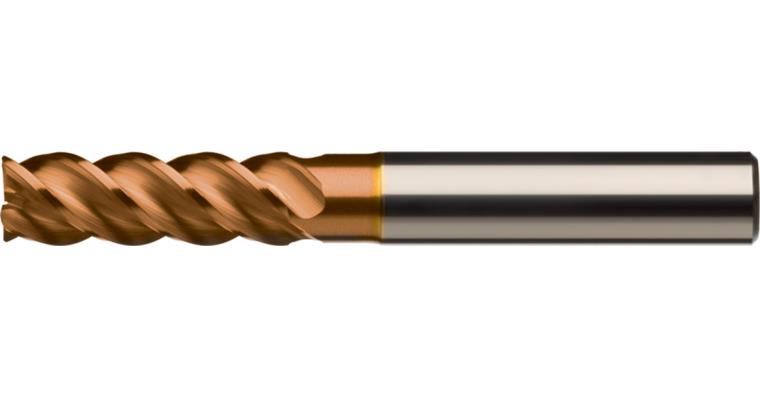

ATORN solid carbide end mill T4 HPC HA, 6.0x18x24x62mm, coated, long

ATORN solid carbide end mill T4 HPC HA, 6.0x18x24x62mm, coated, long

ATORN solid carbide end mill T4 HPC HA, 6.0x18x24x62mm, coated, long
Item no: 1016742 103

Online price:

Still in stock: 1

Application
HPC end mill with uneven twist and uneven pitch for rough and finish machining of non-ferrous metals.

Execution
  • solid carbide ultra-fine grain
  • straight shank in accordance with DIN 6535 HA
  • with edge protection chamfer
  • defined edge rounding of the cutting edge
  • centre cutting
  • with clearance
  • uneven 35°/38° twist angle
  • ZrCN ULTRA-N coated

Advantage
  • extremely quiet running
  • reduces vibrations
  • higher feeds and cutting depths possible
  • ideal for static and dynamic trochoidal milling
  • defined edge rounding for maximum service life


Brand: ATORN
Cutting material: SC
Surface: ULTRA N
Type: W
Number of cutting edges (Z): 4 PCS
Twist angle: 35° | 38°
Tool holding device: HA parallel shank
Construction length: Long
Cutting edge diameter: 6 mm
Cutting edge length: 18 mm
Clearance length: 24 mm
Length: 62 mm
Edge protection chamfer length: 0,2 mm
Clearance diameter: 5,6 mm
Shank diameter: 6 mm
fz aluminium: 0,07 mm
Overall stainless steel suitability: 3
fitness not iron total: 1
fitness Titan/Nickel/Super total: 3

ATORN-No.: 11263532

EAN no.: 4050293341997

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN solid carbide end mill T4 HPC HA, 10.0x30x38x80mm, coated, long
    107,72 €
  • Sealed prec. collet chuck dia. 4 mm w. spray nozzle GERC32-HPD/469E DxL=33x40 mm
  •
    Sealed prec. collet chuck dia. 8mm w/spray nozzle GERC32-HPDD/469E DxL=33x40mm
    110,70 €

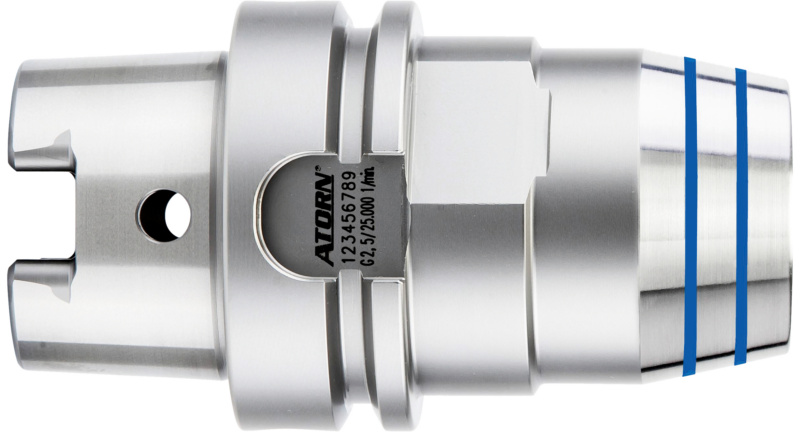

  • ATORN hydraulic exp. chuck HPH HSK63 (ISO 12164) dia. 20 mm short, heavy-duty
