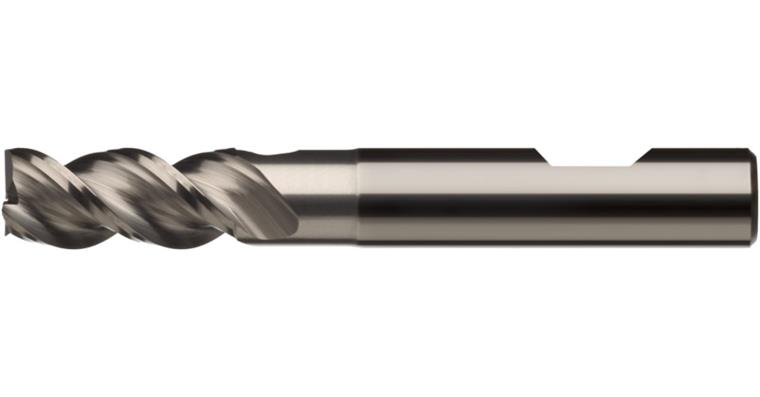

ATORN solid carbide end mill T3 HB, 4.0 x 12 x 18 x 57 mm, plain

ATORN solid carbide end mill T3 HB, 4.0 x 12 x 18 x 57 mm, plain

ATORN solid carbide end mill T3 HB, 4.0 x 12 x 18 x 57 mm, plain
Item no: 1016725 102

Online price:

Available for immediate delivery

Application
End mill for universal machining of non-ferrous metals.

Execution
  • Solid carbide ultra-fine grain
  • Centre cutting
  • With clearance
  • Uncoated
  • Straight shank in accordance with DIN 6535 HB
  • Sharp-edged
  • Defined edge rounding of the cutting edge
  • Mirror finish


Brand: ATORN
Cutting material: SC
Surface: Uncoated
Type: W
Number of cutting edges (Z): 3 PCS
Twist angle: 45°
Tool holding device: HB parallel shank
Construction length: Normal
Cutting edge diameter: 4 mm
Cutting edge length: 12 mm
Clearance length: 18 mm
Length: 57 mm
Clearance diameter: 3,8 mm
Shank diameter: 6 mm
fz aluminium: 0,03 mm
Overall stainless steel suitability: 3
fitness not iron total: 1
fitness Titan/Nickel/Super total: 3

ATORN-No.: 11263241

EAN no.: 4050293340785

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • CS./CS. DEBUR. TL. 90° SET 1/4 IN 6.3-20.5
  •
    ATORN solid carbide end mill T2 HB, 12.0 x 26 x 36 x 83 mm, plain
    79,71 €
  • ATORN solid carbide end mill T3 HA, 6.0 x 16 x 21 x 57 mm, plain
  •
    ATORN solid carbide end mill T3 HA, 8.0 x 22 x 28 x 64 mm, plain
  •
    ATORN solid carbide end mill T3 HA, 10.0 x 25 x 33 x 73 mm, plain
  •
    ATORN solid carbide end mill T3 HA, 16.0 x 35 x 45 x 93 mm, plain
  •
    ATORN solid carbide end mill T3 HB, 8.0 x 22 x 28 x 64 mm, plain
  •
    ATORN solid carbide end mill T3 HB, 10.0 x 25 x 33 x 73 mm, plain
  •
    ATORN solid carbide end mill T3 HB, 12.0 x 28 x 39 x 84 mm, plain
  •
    ATORN SC torus milling cutter T2 HA, 3.0 x 4 x 14 x 50, R0.3, coated
  •
    ATORN solid carbide roughing cutter Z3 HB shaft diameter 20.0 x 41 x 104 mm
  •

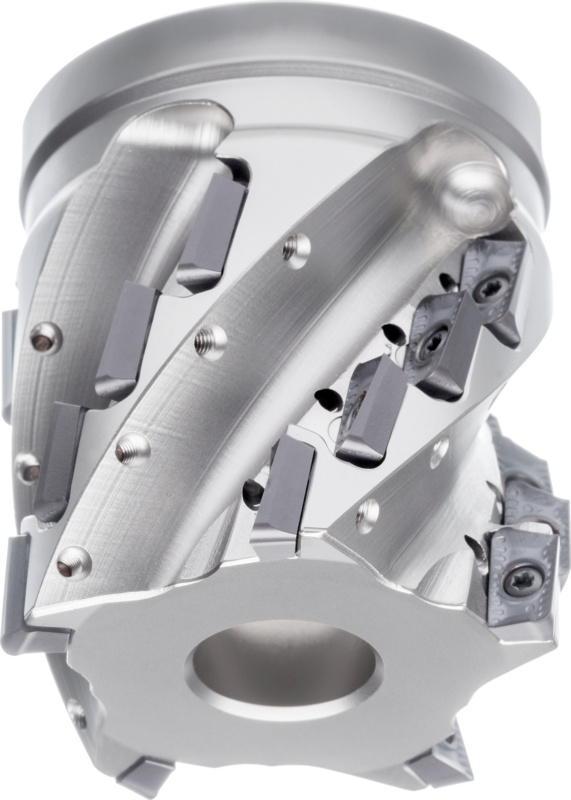

    ATORN 90° lng edge mill cutter w. bore D 80.0mm/5 tooth for ind ins AD.X 1705..
