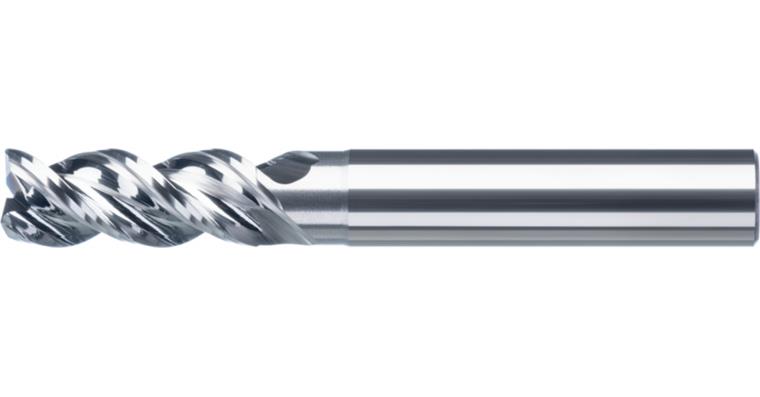

ATORN SC end mill edge protection, polished 4.0 mm HA shank T=3 short

ATORN SC end mill edge protection, polished 4.0 mm HA shank T=3 short

ATORN SC end mill edge protection, polished 4.0 mm HA shank T=3 short
Item no: 1016722 202

Online price:

Available in 6-8 working days.

Application
End mill for universal machining of non-ferrous metals.

Execution
  • Solid carbide ultra-fine grain
  • Centre cutting
  • With clearance
  • Uncoated
  • Straight shank in accordance with DIN 6535 HA
  • With edge protection chamfer
  • Polished design - sharpened edges for even smoother cutting and improved chip removal, in plastics too


Brand: ATORN
Cutting material: SC
Surface: Polished
Type: W
Number of cutting edges (Z): 3 PCS
Twist angle: 45°
Tool holding device: HA parallel shank
Construction length: Normal
Cutting edge diameter: 4 mm
Cutting edge length: 12 mm
Clearance length: 18 mm
Length: 57 mm
Edge protection chamfer length: 0,1 mm
Clearance diameter: 3,8 mm
Shank diameter: 6 mm
fz aluminium: 0,03 mm
Overall stainless steel suitability: 3
fitness not iron total: 1
fitness Titan/Nickel/Super total: 3

ATORN-No.: 11263935

EAN no.: 4050293648416

Product Datasheet
