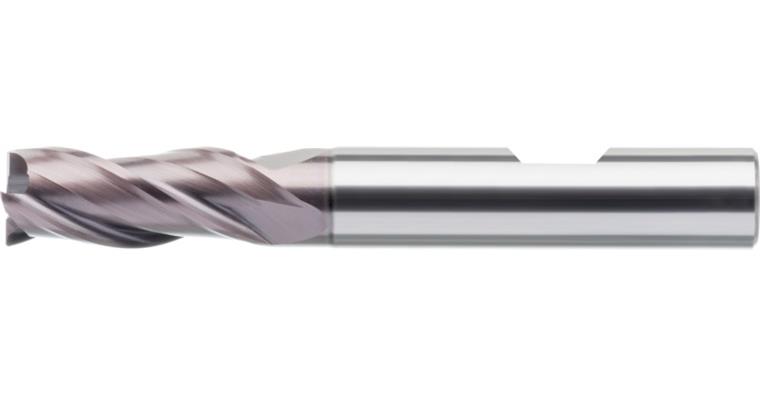

ATORN HPC POWER SC groove end mill, UNI, 6.0 x 13 x 21 x 57 mm HB, type N, long

ATORN HPC POWER SC groove end mill, UNI, 6.0 x 13 x 21 x 57 mm HB, type N, long

ATORN HPC POWER SC groove end mill, UNI, 6.0 x 13 x 21 x 57 mm HB, type N, long
Item no: 1016671 205

Online price:

Available in 5-7 working days.

Application
HPC end mill for universal application, ideal for groove milling.

Execution
  • Solid carbide ultra-fine grain
  • ULTRA high-performance coating
  • Centre cutting
  • Unequal twist angle 33°/35°/37°
  • Unequal cutting edge pitch
  • With edge protection chamfer
  • With clearance
  • Cutting edge with edge preparation

Advantage
  • Increased material removal rate
  • High level of process reliability up to 2xD
  • Higher feed rates and cutting depths possible
  • Reduces vibrations
  • Ideal for groove milling


Brand: ATORN
Cutting material: SC
Surface: ULTRA
Type: N
Number of cutting edges (Z): 3 PCS
Twist angle: 37° | 33° | 35°
Tool holding device: HB parallel shank
Construction length: Normal
Cutting edge diameter: 6 mm
Cutting edge length: 13 mm
Clearance length: 21 mm
Length: 57 mm
Edge protection chamfer length: 0,2 mm
Clearance diameter: 5,7 mm
Shank diameter: 6 mm
fz steel 1000: 0,06 mm
Overall stainless steel suitability: 2
fitness not iron total: 2
fitness Titan/Nickel/Super total: 2

ATORN-No.: 10617363

EAN no.: 4050293411409

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN solid carbide twist drill bit type N 5xD 2.3 mm x 53 mm 118°
    10,97 €
  • ATORN HPC POWER SC groove end mill, UNI, 5.75 x 6 x 18 x 54 mm HA, type N short
  •
    ATORN HPC POWER SC groove end mill, UNI, 7.75 x 9 x 22 x 58 mm HA, type N short
  •
    ATORN HPC POWER SC groove end mill, UNI, 9.7 x 11 x 26 x 66 mm HA, type N short
  •
    ATORN HPC POWER SC groove end mill, UNI, 5.75 x 6 x 18 x 54 mm HB, type N, short
    28,87 €
  • ATORN HPC POWER SC groove end mill, UNI, 7.75 x 9 x 22 x 58 mm HB, type N short
    32,52 €
  • ATORN HPC POWER SC groove end mill, UNI, 9.7 x 11 x 26 x 66 mm HB, type N short
    --
  • ATORN HPC POWER SC groove end mill, UNI, 8.0 x 19 x 27 x 63 mm HA, type N, long
  •
    ATORN SC end mill edge protection, polished 10.0 mm HA shank T=3 long
  •

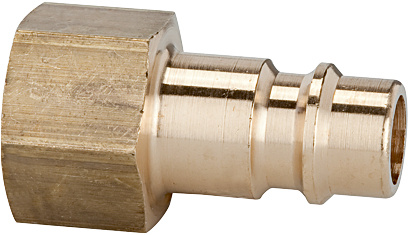

    Nipple 243.55 couplings nominal width 7.2-7.8 mm connection G 1/4 FT 32 mm
  •

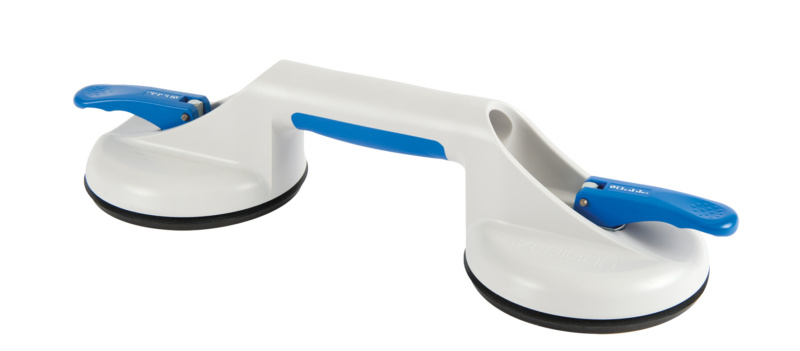

    Dual-headed vacuum lifter plastic retention force approx. 50kg w/2 suction discs
  •

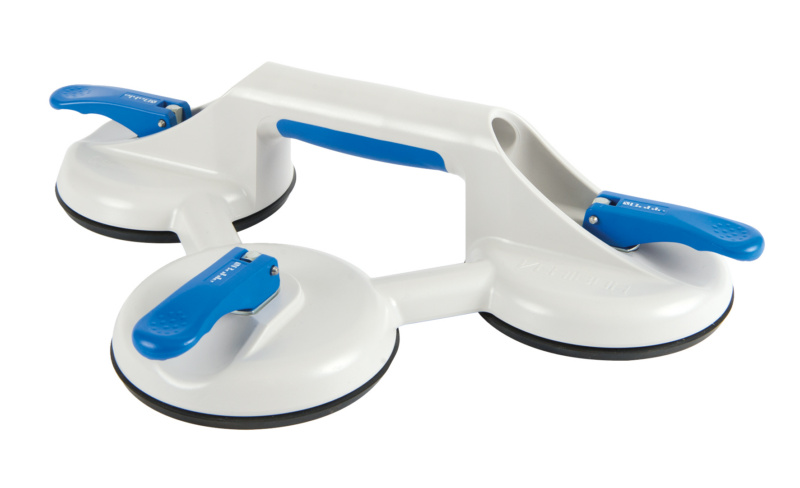

    Triple-headed vacuum lifter plastic, ret. force approx. 90kg w/3 suction discs
