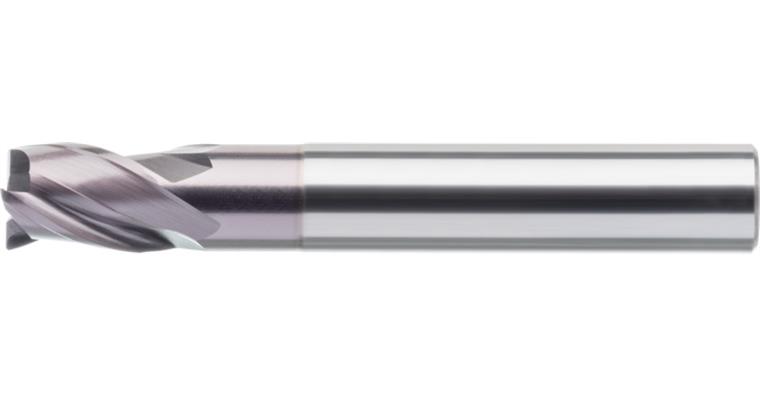

ATORN HPC POWER SC groove end mill, UNI, 9.7 x 11 x 26 x 66 mm HA, type N short

ATORN HPC POWER SC groove end mill, UNI, 9.7 x 11 x 26 x 66 mm HA, type N short

ATORN HPC POWER SC groove end mill, UNI, 9.7 x 11 x 26 x 66 mm HA, type N short
Item no: 1016670 108

Online price:

Only while stocks last: 2

Application
HPC end mill for universal application, ideal for groove milling.

Execution
  • Solid carbide ultra-fine grain
  • ULTRA high-performance coating
  • Centre cutting
  • Unequal twist angle 33°/35°/37°
  • Unequal cutting edge pitch
  • With edge protection chamfer
  • With clearance
  • Cutting edge with edge preparation
  • With conical cutting section

Advantage
  • Increased material removal rate
  • High level of process reliability up to 2xD
  • Higher feed rates and cutting depths possible
  • Reduces vibrations
  • Ideal for groove milling


Brand: ATORN
Cutting material: SC
Surface: ULTRA
Type: N
Number of cutting edges (Z): 3 PCS
Twist angle: 33° | 35° | 37°
Tool holding device: HA parallel shank
Construction length: Short
Cutting edge diameter: 9,7 mm
Cutting edge length: 11 mm
Clearance length: 26 mm
Length: 66 mm
Edge protection chamfer length: 0,2 mm
Clearance diameter: 9,3 mm
Shank diameter: 10 mm
fz steel 1000: 0,1 mm
Overall stainless steel suitability: 2
fitness not iron total: 2
fitness Titan/Nickel/Super total: 2

ATORN-No.: 10617394

EAN no.: 4050293411713

Product Datasheet Datasheet cutting values
