Trochoidal milling cutter (VA) 5 c/edges w/clear. SC/AlCrN DIN 6535 HB dia. 20mm

Trochoidal milling cutter (VA) 5 c/edges w/clear. SC/AlCrN DIN 6535 HB dia. 20mm

Trochoidal milling cutter (VA) 5 c/edges w/clear. SC/AlCrN DIN 6535 HB dia. 20mm
Item no: 1016665 220

Online price:

Still in stock: 2

Application
For stainless steels and heat resistant alloys.

Execution
  • 3xD cutting length
  • Uneven pitch
  • With variable 41–42° helix angle
  • With clearance


Brand: LIZZARD
Material to be processed: Stainless steel | Titanium
Cutting edge diameter: 20 mm
Cutting edge length: 60 mm
Clearance length: 74 mm
Length: 126 mm
Clearance diameter: 19,5 mm
Shank diameter: 20 mm
Edge protection chamfer length: 0,40 mm
Edge protection for chamfer angle: 45 Degree
Number of cutting edges (Z): 5 PCS
Twist angle: 41° (right) | 42° (right)
Center cutting: No
Construction length: Long
Design of cutting edges: Smoothing
Cutting direction: Right-hand cutting
fz stainless steel: 0,125 mm

Versions
loading
Keywords:

[Text nicht gefunden]

  • Trochoidal milling cutter (VA) 5 c/edges w/clear. SC/AlCrN DIN 6535 HB dia. 10mm
    48,80 €
  • Trochoidal milling cutter (VA) 5 c/edges w/clear. SC/AlCrN DIN 6535 HB dia. 12mm
    65,00 €
  • Sanding sponge siasponge block soft fineness fine 98x69x26 mm
    1,36 €
  • Electrician's slotted screwdriver Kraftform handle 0.4x2.5x60 mm
    4,09 €
  • Electrician's slotted screwdriver Kraftform handle 0.4x2.5x75 mm
    4,65 €
  • Electrician's slotted screwdriver Kraftform handle 1x5.5x300 mm
    13,30 €
  • Extremely robust steel bar clamps with catch, clamp. width x overhang 500x175 mm
  •
    Extremely robust steel bar clamps with catch, clamp. width x overhang 600x175 mm
  •
    Dustpan sheet steel with wooden handle black painted 220x200 mm
    8,89 €

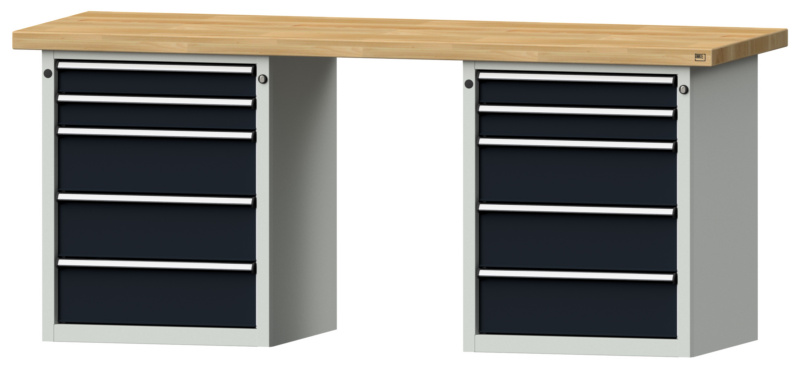

  • Kastenwerkbank 2000x700x850mm 10 Schubladen Buche-Massivplatte 7035/5012
    2.632,45 €

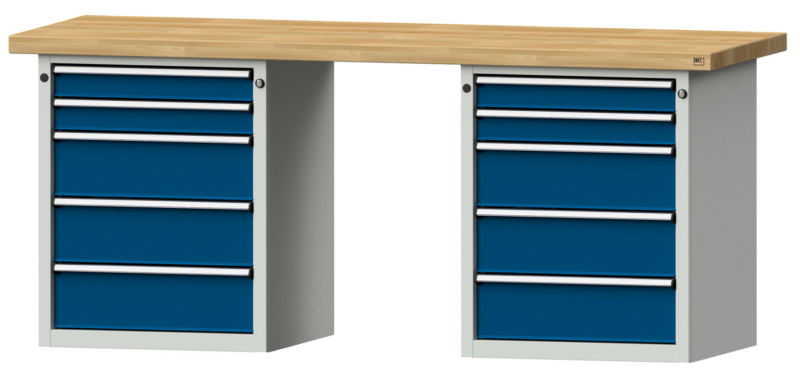

  • Kastenwerkbank 2000x700x850mm 10 Schubladen Buche-Massivplatte 7035/5010
  •

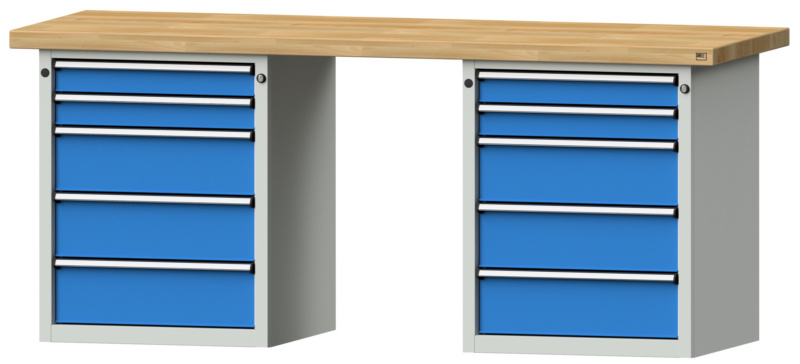

    Kastenwerkbank 2000x700x850mm 10 Schubladen Buche-Massivplatte 7035/7016
