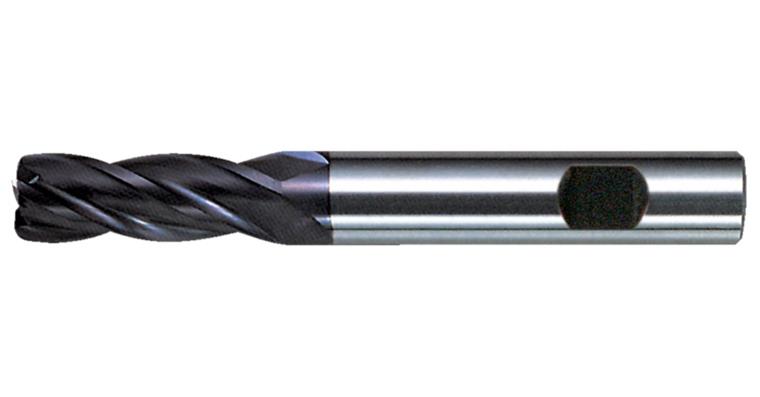

SC torus milling cutter TiAlN 40° normal HB shank T=4 dia. 6 R0.5

SC torus milling cutter TiAlN 40° normal HB shank T=4 dia. 6 R0.5

SC torus milling cutter TiAlN 40° normal HB shank T=4 dia. 6 R0.5
Item no: 1016637 101

Online price:

Available in 6-8 working days.

Application
For universal use up to 1300 N/mm²

Execution
  • Normal
  • Right-cutting
  • With corner radius


Brand: LIZZARD
Material to be processed: Universal use | Hardened steel
Cutting edge diameter: 6 mm
Corner radius: 0,5 mm
Cutting edge length: 20 mm
Length: 60 mm
Shank diameter: 6 mm
Number of cutting edges (Z): 4 PCS
Twist angle: 40° (right)
Type: HSC
Construction length: Normal
Design of cutting edges: Smoothing
Cutting direction: Right-hand cutting
fz steel 1000: 0,03 mm
