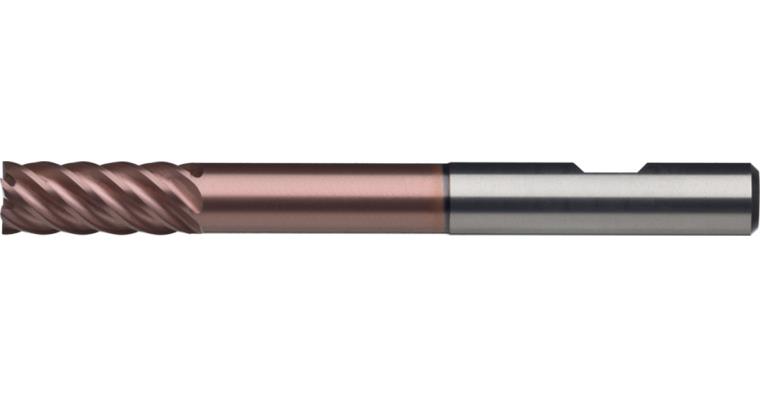

ATORN ULTRA solid carbide VA end mill, 4.0x11x57 mm, DIN 6535, HB shank

ATORN ULTRA solid carbide VA end mill, 4.0x11x57 mm, DIN 6535, HB shank

ATORN ULTRA solid carbide VA end mill, 4.0x11x57 mm, DIN 6535, HB shank
Item no: 1016616 201

Online price:

Available in 5-7 working days.

Application
For circumferential milling as a finishing process to create a high surface quality. Face cut only with shallow cutting depths.

Execution
  • Solid carbide ultra-fine grain
  • Straight shank pursuant to DIN 6535 HB
  • ULTRA-coated
  • Centre cutting
  • With clearance


Brand: ATORN
Cutting material: SC
Surface: ULTRA
Type: VA
Number of cutting edges (Z): 6 PCS
Twist angle: 45°
Tool holding device: HB parallel shank
Construction length: Normal
Cutting edge diameter: 4 mm
Cutting edge length: 11 mm
Clearance length: 19 mm
Length: 57 mm
Edge protection chamfer length: 0,2 mm
Clearance diameter: 3,7 mm
Shank diameter: 6 mm
fz steel 1000: 0,16 mm
Overall stainless steel suitability: 1
fitness not iron total: 1
fitness Titan/Nickel/Super total: 1

ATORN-No.: 10911802

EAN no.: 4050293100501

Datasheet cutting values
