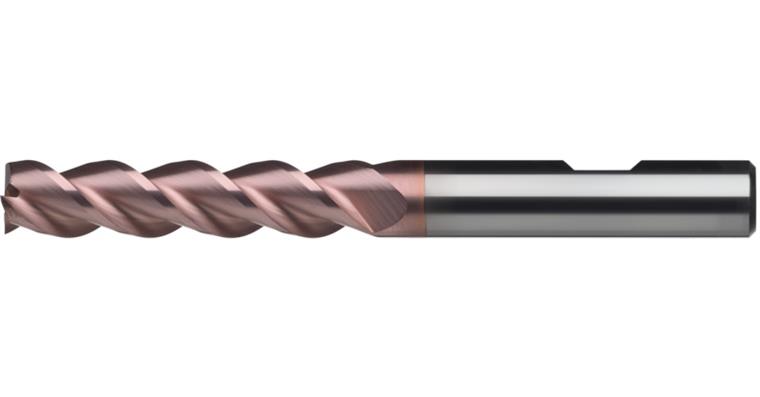

ATORN solid carbide square end mill T=3 long 9.50mm ultra shank DIN 6535 HB

ATORN solid carbide square end mill T=3 long 9.50mm ultra shank DIN 6535 HB

ATORN solid carbide square end mill T=3 long 9.50mm ultra shank DIN 6535 HB
Item no: 1016612 113

Online price:

Available in 5-7 working days.

Application
End mill for universal use when plunge milling, groove milling and keyway cutting as well as face milling and peripheral milling.

Execution
  • solid carbide ultra-fine grain
  • straight shank in accordance with DIN 6535 HB
  • centre cutting
  • with edge protection chamfer
  • ULTRA-coated


Brand: ATORN
Cutting material: SC
Surface: ULTRA
Type: N
Number of cutting edges (Z): 3 PCS
Twist angle: 45°
Tool holding device: HB parallel shank
Construction length: Long
Cutting edge diameter: 9,5 mm
Cutting edge length: 38 mm
Length: 88 mm
Edge protection chamfer length: 0,2 mm
Shank diameter: 10 mm
fz steel 1000: 0,056 mm
Overall stainless steel suitability: 1
fitness not iron total: 2
fitness Titan/Nickel/Super total: 2

ATORN-No.: 10910829

EAN no.: 4050293092103

Product Datasheet Datasheet cutting values
