HHW SC HPC end mill INOX extra-long Alcrona Pro HB shank Z4 dia. 16

HHW SC HPC end mill INOX extra-long Alcrona Pro HB shank Z4 dia. 16

HHW SC HPC end mill INOX extra-long Alcrona Pro HB shank Z4 dia. 16
Item no: 1016595 316

Online price:

Available for immediate delivery

Application
For universal roughing and finishing in stainless steels, optimum machining performance even at high cutting speeds. Also suitable for steels up to 1100 N/mm2.

Execution
  • Unequal cutting edge pitch
  • With 45° edge protection chamfer
  • With clearance

Advantage
  • Extremely smooth running
  • Defined edge rounding for maximum service life
  • Minimal heat generation
  • Optimised geometry
  • Reinforced core diameter


Brand: LIZZARD
Material to be processed: Stainless steel | Universal use
Cutting edge diameter: 16 mm
Cutting edge length: 48 mm
Clearance length: 58 mm
Length: 108 mm
Clearance diameter: 15,5 mm
Shank diameter: 16 mm
Edge protection chamfer length: 0,2 mm
Edge protection for chamfer angle: 45 Degree
Number of cutting edges (Z): 4 PCS
Twist angle: 35-38°
Center cutting: Yes
Type: UNI
Construction length: Long
Design of cutting edges: Smoothing
Cutting direction: Right-hand cutting
fz stainless steel: 0,053 mm

Versions
loading
Keywords:

You might also be interested in this

  • HHW SC HPC end mill INOX extra-long Alcrona Pro HB shank Z4 dia. 20
    174,90 €
  • HHW SC HPC end mill INOX extra-long Alcrona Pro HB shank Z4 dia. 12
  •
    HHW SC HPC end mill INOX extra-long Alcrona Pro HB shank Z4 dia. 10
  •
    Manual selector switch with magnet control cable 4-2 DUO hose length 3000 mm
  •
    End mill, extra-long, type N, straight face, cyl. HSS+TiALN 20 x 180 mm
    168,92 €
  • HHW SC HPC end mill INOX extra-long Alcrona Pro HB shank Z4 dia. 5
  •

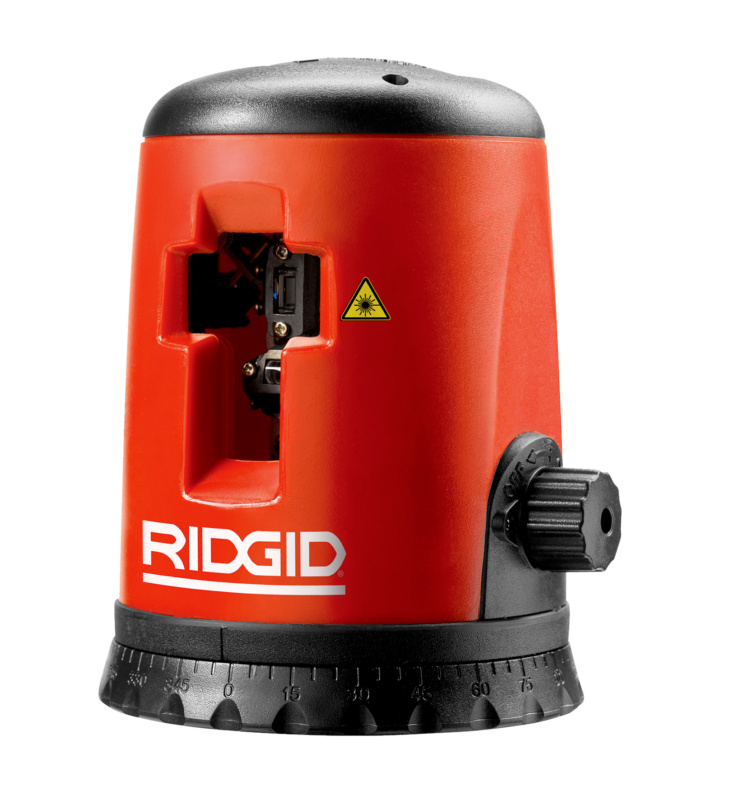

    Cross-line laser micro CL-100 self-levelling IP54 incl. tripod
  •
