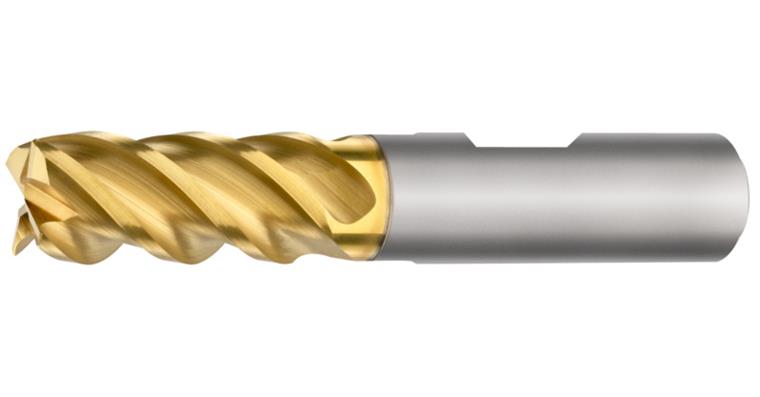

Premium Gold Edition DIN 6535HB 4 mm Z4 with multi-layer smooth coating

Premium Gold Edition DIN 6535HB 4 mm Z4 with multi-layer smooth coating

Premium Gold Edition DIN 6535HB 4 mm Z4 with multi-layer smooth coating
Video
Item no: 1016591 204

Online price:

Available for immediate delivery

Application
HPC cutter for roughing and finishing. For universal use with all steel materials.

Execution
  • High-performance tool with improved substrate
  • With increasing core size
  • Large chip flute
  • Defined support chamfer
  • Roughened clamping shank
  • Uneven pitch
  • New multi-layer smooth layer
  • With clearance

Advantage
  • Extremely long service life
  • Maximum smoothness
  • Maximum process reliability


Brand: LIZZARD
Material to be processed: Stainless steel | Steel | Cast metal
Cutting edge diameter: 4 mm
Cutting edge length: 11 mm
Clearance length: 21 mm
Length: 57 mm
Clearance diameter: 3,6 mm
Shank diameter: 6 mm
Edge protection chamfer length: 0,18 mm
Edge protection for chamfer angle: 45 Degree
Number of cutting edges (Z): 4 PCS
Twist angle: 35-38°
Center cutting: Yes
Type: HPC
Construction length: Normal
Design of cutting edges: Smoothing
Cutting direction: Right-hand cutting
fz steel 1000: 0,013 mm
