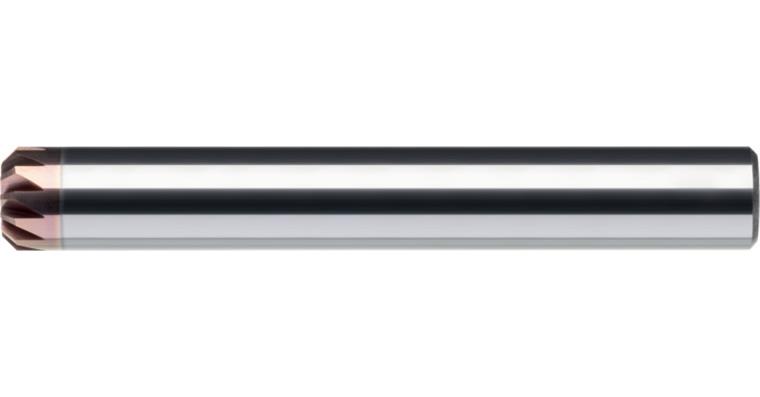

ATORN SC HIGH FEED deburring tool 90° diameter 6 mm T=10 ULTRA H HA

ATORN SC HIGH FEED deburring tool 90° diameter 6 mm T=10 ULTRA H HA

ATORN SC HIGH FEED deburring tool 90° diameter 6 mm T=10 ULTRA H HA
Item no: 1016581 906

Online price:

Available in 4-6 working days.

Application
For producing 45° chamfers and for deburring up to 55 HRC

Execution
  • defined cutting edge rounding
  • 10-14 teeth
  • High-performance ULTRA H coating for universal application up to 55 HRC

Advantage
  • Up to 100 % higher productivity
  • Extremely high feed rates thanks to the special cutting edge geometry


Brand: ATORN
Cutting edge diameter: 6 mm
Werkstückkante: 45 Grad
Chamfer angle: 90 Degree
Type: H
Number of cutting edges (Z): 10 PCS
Surface: ULTRA H
Shank diameter: 6 mm
Tool holding device: HA parallel shank
Cutting edge length (S): 1,4 mm
Length: 57 mm

ATORN-No.: 11201289

EAN no.: 4066107042868

Product Datasheet
