SC end mill medium HB 35/38° 16x108 mm

SC end mill medium HB 35/38° 16x108 mm

SC end mill medium HB 35/38° 16x108 mm
Item no: 1016554 106

Online price:

Available for immediate delivery

Application
for use in cast iron, stainless steel and steel up to 1,300 N/mm²

Execution
  • Centre cutting
  • Optimised chip chamber
  • Up to 80 % longer service life and up to 60 % more feed
  • Roughing and finishing with just one tool
  • Low-vibration running

Advantage
Maximum machining performance


Brand: LIZZARD
Material to be processed: Stainless steel | Steel | Cast metal
Cutting edge diameter: 16 mm
Cutting edge length: 52 mm
Clearance length: 58 mm
Length: 108 mm
Clearance diameter: 15,4 mm
Shank diameter: 16 mm
Edge protection chamfer length: 0,4 mm
Edge protection for chamfer angle: 45 Degree
Number of cutting edges (Z): 4 PCS
Twist angle: 35-38°
Center cutting: Yes
Type: G2
Construction length: Long
Design of cutting edges: Smoothing
Cutting direction: Right-hand cutting
fz steel 1000: 0,065 mm

Versions
loading
Keywords:

[Text nicht gefunden]

  • End mill cyl. DIN 844 B type W short 2 cutting edges centre-cutting HSS-E 22 mm
  •
    SC end mill medium HB 35/38° 20x126 mm
    275,40 €
  • ATORN solid carbide end mill T=3 8.00 mm ultra coated DIN 6535HB
  •
    SC end mill for graphite long diamond coating, 3 x 50 mm, 3 cutting edges
    144,10 €
  • ATORN DCGW 04T002 ABC30B/A clearance angle 7 degrees uncoated ap 0.01–1.7 mm
  •
    ATORN VCGW 050104 ABC30B/A clearance angle 7 degrees uncoated ap 0.01-1.7 mm
  •
    ATORN WCGW 020101 ABC30B/A clearance angle 7 degrees uncoated ap 0.01–1.3 mm
  •
    ATORN VCGW 050104 ABC15B/A clearance angle 7 degrees uncoated ap 0.01–1.7 mm
    110,88 €
  • ATORN WCGW 020101 ABC15B/A clearance angle 7 degrees uncoated ap 0.01–1.3 mm
    110,88 €

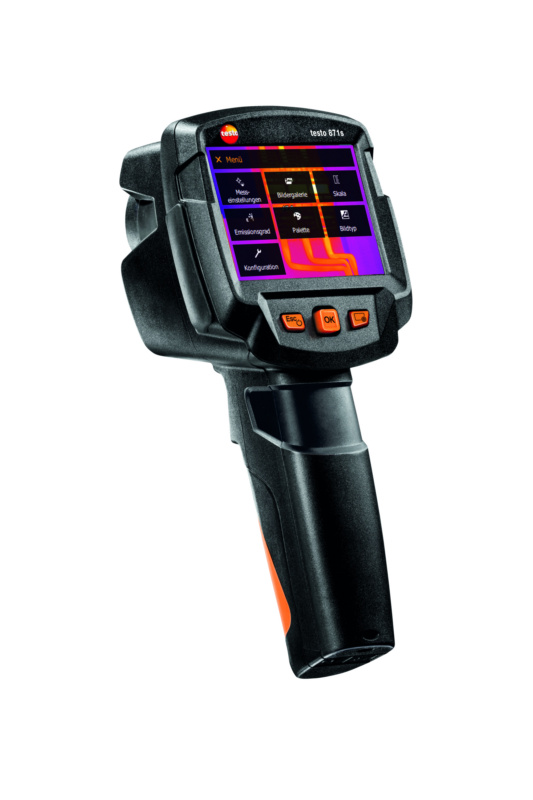

  • testo 871s - thermal imaging camera (240 x 180 pixels, app)
