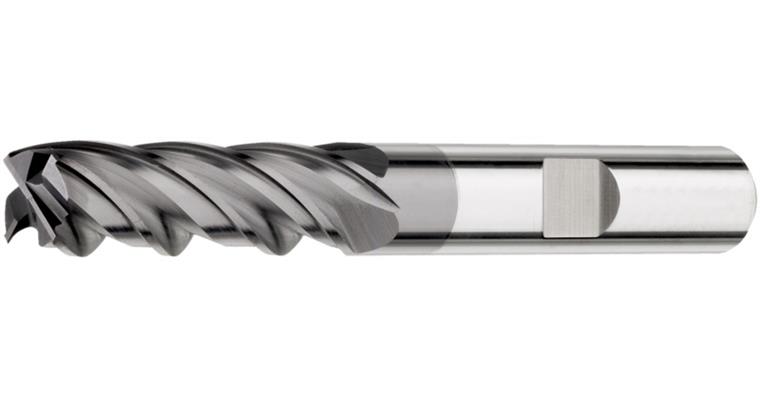

SC end mill medium HB 35/38° 12x93 mm

SC end mill medium HB 35/38° 12x93 mm

SC end mill medium HB 35/38° 12x93 mm
Item no: 1016554 105

Online price:

Available for immediate delivery

Application
for use in cast iron, stainless steel and steel up to 1,300 N/mm²

Execution
  • Centre cutting
  • Optimised chip chamber
  • Up to 80 % longer service life and up to 60 % more feed
  • Roughing and finishing with just one tool
  • Low-vibration running

Advantage
Maximum machining performance


Brand: LIZZARD
Material to be processed: Stainless steel | Steel | Cast metal
Cutting edge diameter: 12 mm
Cutting edge length: 41 mm
Clearance length: 46 mm
Length: 93 mm
Clearance diameter: 11,4 mm
Shank diameter: 12 mm
Edge protection chamfer length: 0,3 mm
Edge protection for chamfer angle: 45 Degree
Number of cutting edges (Z): 4 PCS
Twist angle: 35-38°
Center cutting: Yes
Type: G2
Construction length: Long
Design of cutting edges: Smoothing
Cutting direction: Right-hand cutting
fz steel 1000: 0,05 mm
