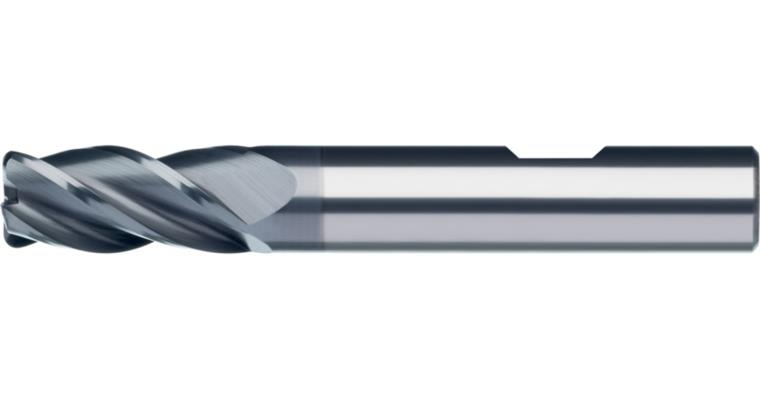

ATORN SC HPC torus milling cutter, Ø 20.0 x 38 x 58 x 104 mm, HB shaft, r=3 mm

ATORN SC HPC torus milling cutter, Ø 20.0 x 38 x 58 x 104 mm, HB shaft, r=3 mm

ATORN SC HPC torus milling cutter, Ø 20.0 x 38 x 58 x 104 mm, HB shaft, r=3 mm
Item no: 1016550 421

Online price:

Available in 8-10 working days.

Application
HPC torus milling cutter with an unequal twist and unequal pitch for smoothing and rough machining stainless steels and titanium, Ni and Co alloys. The unequal twist angle prevents vibration on the tool, thereby ensuring excellent finishing surfaces as well as higher feed rates and greater cutting depths.

Execution
  • Ultra-fine grain cemented carbide
  • HB straight shank
  • With clearance
  • ULTRA MS high-performance coating
  • Defined cutting edge rounding
  • Centre cutting

Advantage
  • Rough machining and smoothing with a single tool
  • Ideal for trochoidal milling
  • HPC geometry for optimum feed rates and running smoothness
  • Suitable for large cutting depths


Brand: ATORN
Cutting material: SC
Surface: ULTRA MS
Type: VA
Number of cutting edges (Z): 4 PCS
Twist angle: 35° | 38°
Tool holding device: HB parallel shank
Construction length: Normal
Cutting edge diameter: 20 mm
Cutting edge length: 38 mm
Clearance length: 58 mm
Length: 104 mm
Clearance diameter: 19 mm
Shank diameter: 20 mm
Edge radius: 3 mm
fz stainless steel: 0,08 mm

ATORN-No.: 11861103

EAN no.: 4050293360271

Product Datasheet Datasheet cutting values
