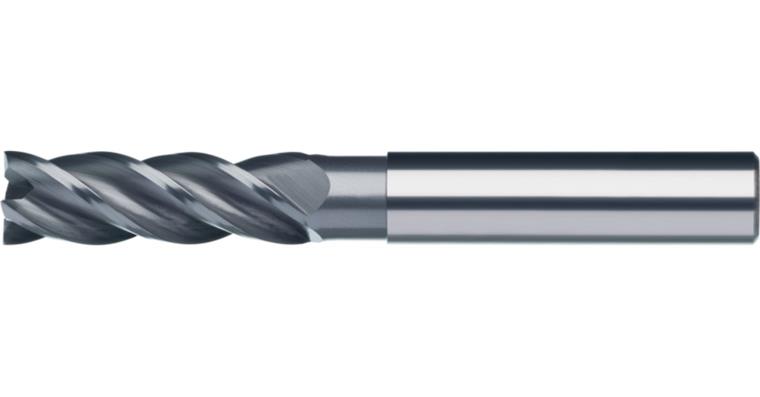

ATORN SC end mill D 12.0 x 32 x 46 x 100mm, HA shaft 4 cutting edges, ULTRA MS

ATORN SC end mill D 12.0 x 32 x 46 x 100mm, HA shaft 4 cutting edges, ULTRA MS

ATORN SC end mill D 12.0 x 32 x 46 x 100mm, HA shaft 4 cutting edges, ULTRA MS
Item no: 1016544 406

Online price:

Available in 8-10 working days.

Application
HPC end mill with uneven helical and uneven pitch for rough machining and finish machining of stainless steel, titanium alloy, nickel and copper alloys. The uneven helical pitch means that vibrations on the tool are reduced, which results in outstanding finished surfaces, while, at the same time, feed rates and cutting depths can be increased.

Execution
  • ultra-fine grain cemented carbide
  • with uneven helical and cutter distribution (35/38°)
  • HA straight shank
  • with clearance
  • high-performance ULTRA MS layer
  • with edge protection chamfer
  • defined cutting edge rounding
  • centre cutting

Advantage
  • rough machining and finishing with just one tool
  • optimum suitability for trochoidal milling
  • HPC geometry for maximum feed rates and running smoothness
  • suitable for large cutting depths


Brand: ATORN
Cutting material: SC
Surface: ULTRA MS
Type: VA
Number of cutting edges (Z): 4 PCS
Twist angle: 35° | 38°
Tool holding device: HA parallel shank
Construction length: Long
Cutting edge diameter: 12 mm
Cutting edge length: 32 mm
Clearance length: 46 mm
Length: 100 mm
Edge protection chamfer length: 0,2 mm
Clearance diameter: 11 mm
Shank diameter: 12 mm
fz stainless steel: 0,047 mm
Overall stainless steel suitability: 1
fitness not iron total: 3
fitness Titan/Nickel/Super total: 1

ATORN-No.: 11861402

EAN no.: 4050293363265

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN carbide reamer, 7-8°, 15.0 mm, H7x204x50 mm, MK shank, DIN 8094, shape B
  •
    ATORN carbide reamer, 7-8°, 20.0 mm, H7x228x60 mm, MK shank, DIN 8094, shape B
  •
    ATORN carbide reamer, 7-8°, 26.0 mm, H7x273x70 mm, MK shank, DIN 8094, shape B
  •
    NC SPOTTING DRILL 90° HSSE-TICN HA D 6
  •
    ATORN SC HPC end mill diameter 16.0 x 32 x 46 x 92 mm, HB shaft
  •
    ATORN SC end mill D 10.0 x 32 x 46 x 100mm, HA shaft 4 cutting edges, ULTRA MS
  •
    ATORN SC end mill D 16.0 x 50 x 85 x 125mm, HA shaft 4 cutting edges, ULTRA MS
  •
    ATORN ultra-solid carbide VA end mill, 6.0 x 13 x 57 mm, DIN 6535 HB shaft
  •
    ATORN SC HSC end mill cutter, teeth=4, 4.0 mm, DIN 6535HA TiAlN shaft, L=11
  •
    SC end mill with clearance HB NTC 35/38° long dia. 10.0mm
  •

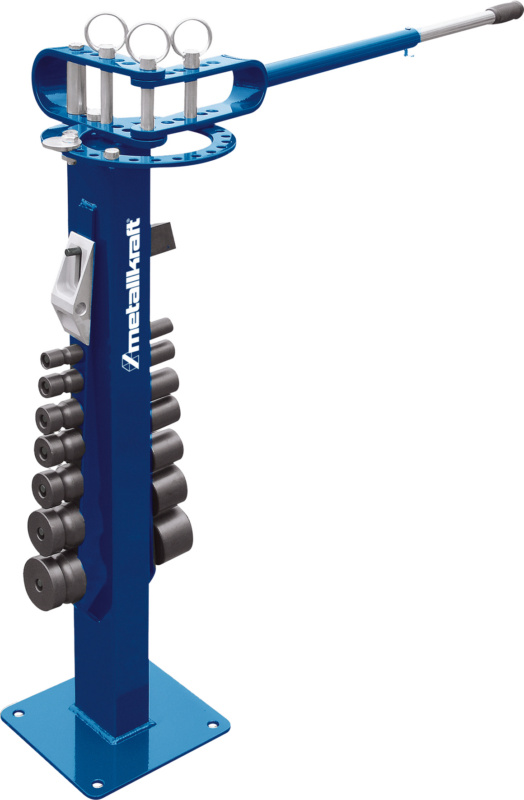

    Universal bending device UB 10 G 3/4 round bending 10x50
  •

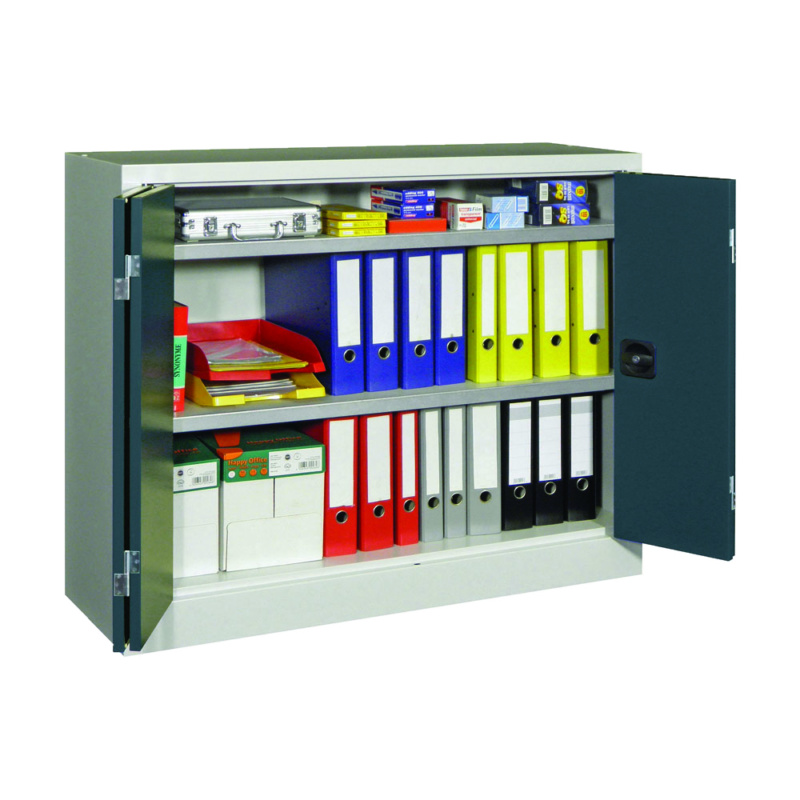

    Folding door cabinet 1000X1200X400 mm RAL 7035/7016
