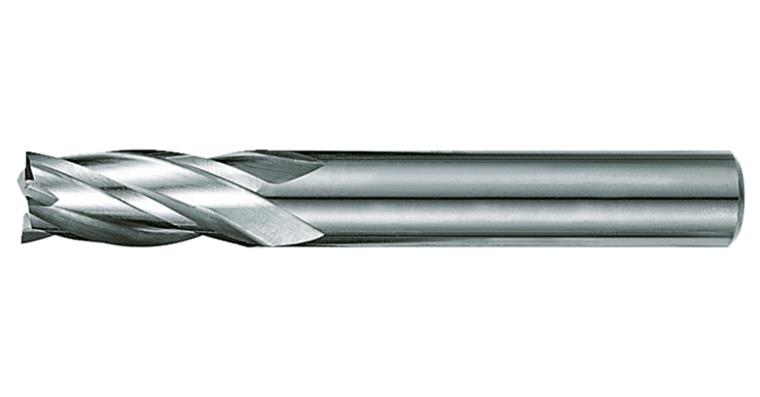

Solid carbide square end mill cyl./6535 HA long 4 cut. edges C-cut P20-K40 10 mm

Solid carbide square end mill cyl./6535 HA long 4 cut. edges C-cut P20-K40 10 mm

Solid carbide square end mill cyl./6535 HA long 4 cut. edges C-cut P20-K40 10 mm
Item no: 1016542 114

Online price:

Available in 6-8 working days.

Application
For universal use up to 1300 N/mm²

Execution
Centre cutting


Brand: LIZZARD
Material to be processed: Universal use
Cutting edge diameter: 10 mm
Cutting edge length: 28 mm
Length: 72 mm
Shank diameter: 10 mm
Number of cutting edges (Z): 4 PCS
Twist angle: 30° (right)
Center cutting: Yes
Type: N
Construction length: Normal
Design of cutting edges: Smoothing
Cutting direction: Right-hand cutting
fz steel 1000: 0,06 mm
