Solid carbide end mill type H 38° STARMAX, long, released, TiAlN-coated 8.0 mm

Solid carbide end mill type H 38° STARMAX, long, released, TiAlN-coated 8.0 mm

Solid carbide end mill type H 38° STARMAX, long, released, TiAlN-coated 8.0 mm
Item no: 1016536 105

Online price:

Still in stock: 5

Application
for use in cast iron, stainless steel and steel up to 1,300 N/mm²

Execution
  • Centre cutting
  • Optimised chip chamber
  • Up to 80 % longer service life and up to 60 % more feed
  • Roughing and finishing with just one tool
  • Low-vibration running
  • With clearance

Advantage
  • Uneven twist angle produces smooth, vibration-free running and good surface quality
  • High cutting performance
  • Roughing and finishing with just one tool


Brand: LIZZARD
Material to be processed: Universal use
Cutting edge diameter: 8 mm
Cutting edge length: 19 mm
Clearance length: 27 mm
Length: 63 mm
Clearance diameter: 7,5 mm
Shank diameter: 8 mm
Edge protection chamfer length: 0,20 mm
Edge protection for chamfer angle: 45 Degree
Number of cutting edges (Z): 4 PCS
Twist angle: 35-38°
Center cutting: Yes
Type: G2
Construction length: Normal
Design of cutting edges: Smoothing
Cutting direction: Right-hand cutting
fz steel 1000: 0,05 mm

Versions
loading
Keywords:

[Text nicht gefunden]

  • Solid carbide end mill type H 38° STARMAX, long, released, TiAlN-coated 5.0 mm
  •
    Solid carbide end mill type H 38° STARMAX, long, released, TiAlN-coated 7.0 mm
  •
    ATORN SWUC boring bar, solid carbide, positive, left, E 05F SWUC R/L 02
    172,00 €
  • ATORN SVVC boring bar, solid carbide, positive, left, E 12K SVVC R/L 07
  •
    ATORN SVVC boring bar, solid carbide, positive, left, E 16M SVVC R/L 07
  •

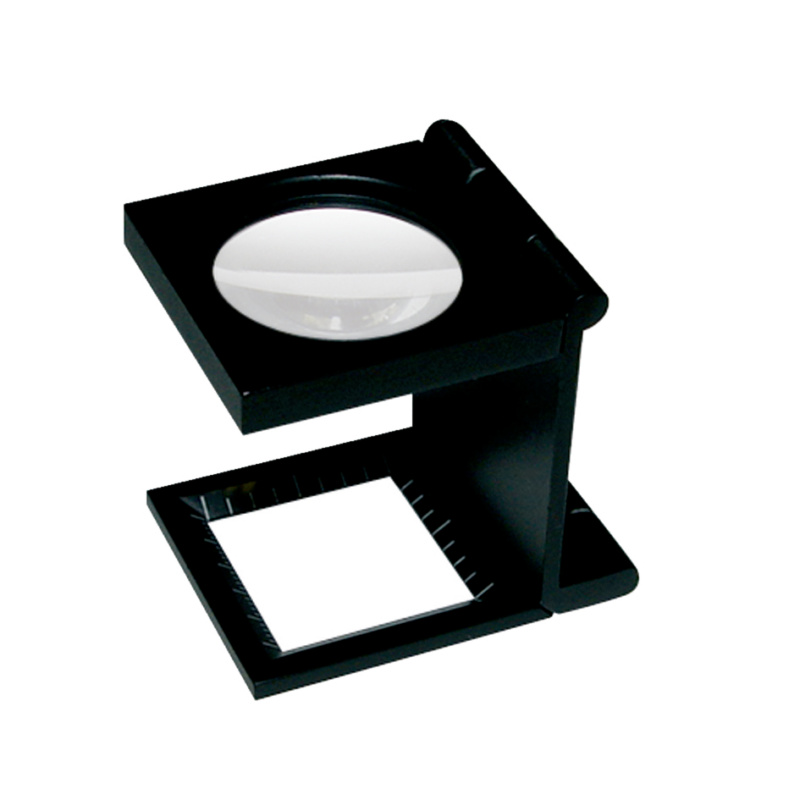

    Measuring magnifier (thread counter) mm/inch scale, magn. 6x, lens dia. 30 mm
