Solid carbide end mill 35/38° G2 4 cut. edges C-cut type VA Nacro coat. 20.0 mm

Solid carbide end mill 35/38° G2 4 cut. edges C-cut type VA Nacro coat. 20.0 mm

Solid carbide end mill 35/38° G2 4 cut. edges C-cut type VA Nacro coat. 20.0 mm
Item no: 1016534 220

Online price:

Available in 6-8 working days.

Application
For INOX, titanium and high alloy steels.

Execution
  • Optimised chip chamber
  • Up to 80% longer service life
  • Up to 60% more feed
  • Centre cutting

Advantage
  • Uneven twist angle produces smooth, vibration-free running and good surface quality
  • High machining performance can be achieved
  • Roughing and finishing with just one tool


Brand: LIZZARD
Material to be processed: Universal use
Cutting edge diameter: 20 mm
Cutting edge length: 38 mm
Length: 104 mm
Shank diameter: 20 mm
Edge protection chamfer length: 0,50 mm
Edge protection for chamfer angle: 45 Degree
Number of cutting edges (Z): 4 PCS
Twist angle: 35-38°
Center cutting: Yes
Type: G2
Construction length: Normal
Design of cutting edges: Smoothing
Cutting direction: Right-hand cutting
fz steel 1000: 0,105 mm

Versions
loading
Keywords:

You might also be interested in this

  • SC square end mill cyl./6535 HB long 3 cutting edges C-cut P20-K40/TiAIN 6 mm
  •
    Twist wood drill bit set, M-drill tip 8 pcs 3/4/5/6/7/8/9/10 mm
  •
    Pliers holder for perforated plates with hole 10x10 mm W 75 D 20 mm pack=5 pcs
  •
    SC square end mill cyl./6535 HB long 3 cutting edges C-cut P20-K40/TiAIN 7 mm
  •
    SC square end mill cyl./6535 HB long 3 cutting edges C-cut P20-K40/TiAIN 3 mm
  •
    Solid carbide end mill 35/38° G2 4 cut. edges C-cut type VA Nacro coat. 10.0 mm
  •
    Solid carbide end mill 35/38° G2 4 cut. edges C-cut type VA Nacro coat. 12.0 mm
  •
    SC square end mill cyl./6535 HB long 3 cutting edges C-cut P20-K40/TiAIN 8 mm
  •
    SC square end mill cyl./6535 HB long 3 cutting edges C-cut P20-K40/TiAIN 9 mm
  •
    Pliers holder for perforated plates with hole 10x10 mm W 35 D 20 mm pack=5 pcs
  •
    SC square end mill cyl./6535 HB long 2 cutting edges C-cut P20-K40/TiAIN 5 mm
  •

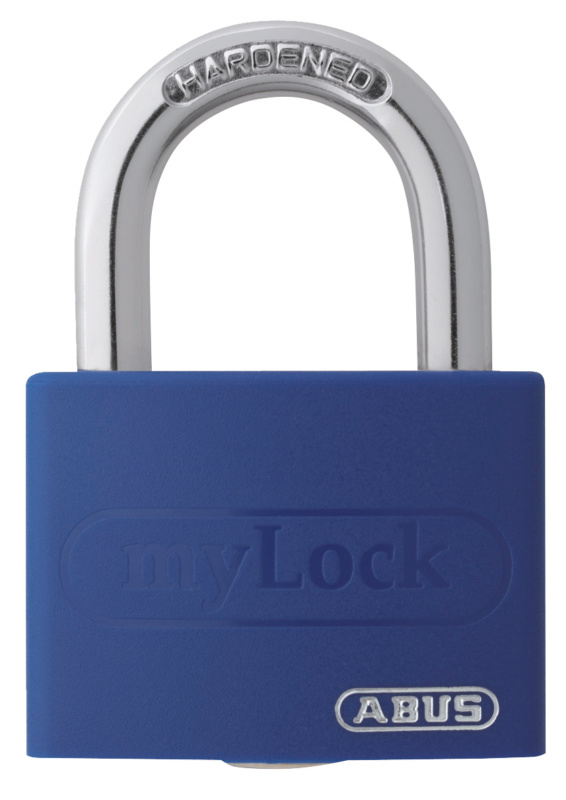

    Padlocks myLock shackle dia. 6.5 mm blue 43x18x61.5 mm
