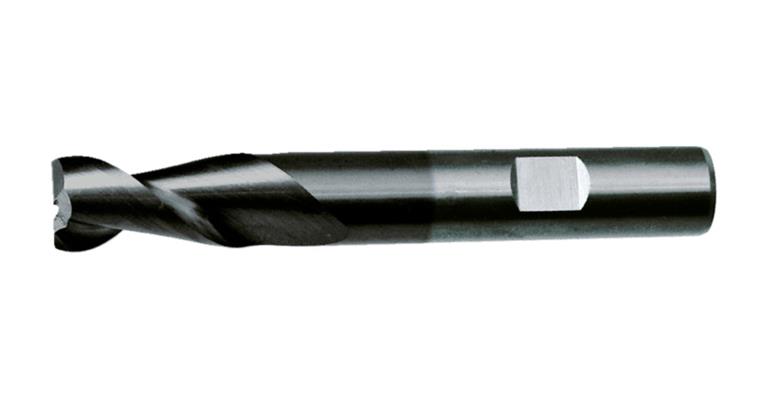

SC square end mill cyl./6535 HB long 2 cutting edges C-cut P20-K40/TiAIN 20 mm

SC square end mill cyl./6535 HB long 2 cutting edges C-cut P20-K40/TiAIN 20 mm

SC square end mill cyl./6535 HB long 2 cutting edges C-cut P20-K40/TiAIN 20 mm
Item no: 1016517 115

Online price:

Available in 6-8 working days.

Application
for use in steel up to 1,300 N/mm² and stainless steel

Execution
Centre cutting


Brand: LIZZARD
Material to be processed: Steel | Stainless steel
Cutting edge diameter: 20 mm
Cutting edge length: 32 mm
Length: 104 mm
Shank diameter: 20 mm
Number of cutting edges (Z): 2 PCS
Twist angle: 30° (right)
Center cutting: Yes
Type: N
Construction length: Normal
Design of cutting edges: Smoothing
Cutting direction: Right-hand cutting
fz steel 1000: 0,1 mm
