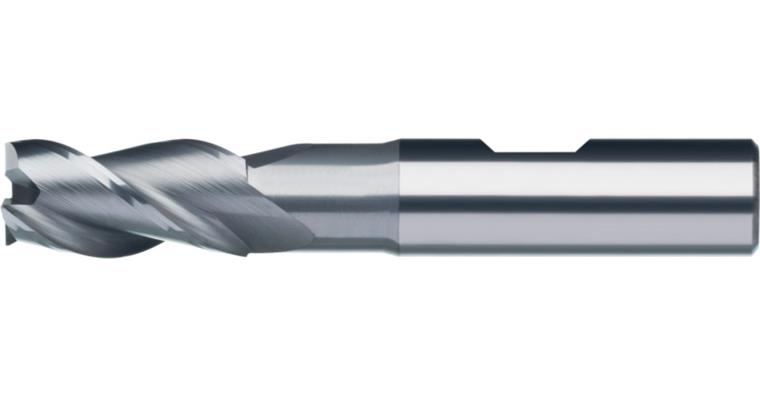

ATORN SC end mill D 20.0 x 38 x 58 x 100mm, HB shaft 3 cutting edges, ULTRA MS

ATORN SC end mill D 20.0 x 38 x 58 x 100mm, HB shaft 3 cutting edges, ULTRA MS

ATORN SC end mill D 20.0 x 38 x 58 x 100mm, HB shaft 3 cutting edges, ULTRA MS
Item no: 1016403 209

Online price:

Available in 8-10 working days.

Application
End mill for machining stainless steel, titanium alloy, nickel and copper alloys.

Execution
  • ultra-fine grain cemented carbide
  • HB straight shank
  • with clearance
  • high-performance ULTRA MS layer
  • defined cutting edge rounding
  • centre cutting

Advantage
  • optimised, positive cutting geometry
  • optimum chip removal and temperature resistance
  • maximum service life thanks to ULTRA MS coating


Brand: ATORN
Cutting material: SC
Surface: ULTRA MS
Type: VA
Number of cutting edges (Z): 3 PCS
Twist angle: 40°
Tool holding device: HB parallel shank
Construction length: Normal
Cutting edge diameter: 20 mm
Cutting edge length: 38 mm
Clearance length: 58 mm
Length: 100 mm
Clearance diameter: 19 mm
Shank diameter: 20 mm
fz stainless steel: 0,08 mm
Overall stainless steel suitability: 1
fitness not iron total: 3
fitness Titan/Nickel/Super total: 1

ATORN-No.: 11861009

EAN no.: 4050293359336

Product Datasheet Datasheet cutting values
