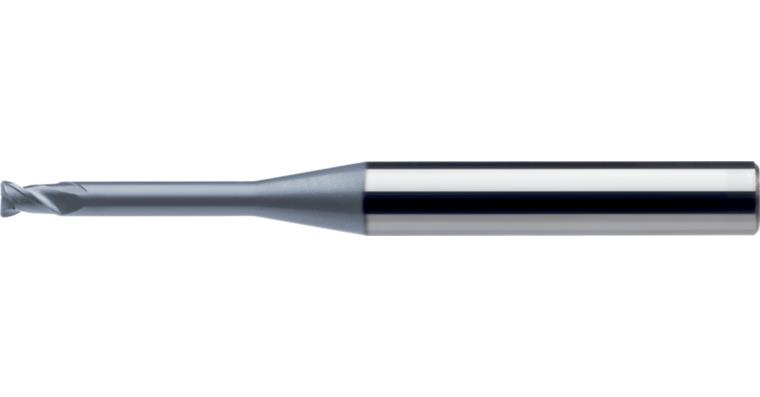

ATORN SC mini-torus milling cutter, Ø 0.5 x 0.7 x 6 x 50 mm, HA shaft

ATORN SC mini-torus milling cutter, Ø 0.5 x 0.7 x 6 x 50 mm, HA shaft

ATORN SC mini-torus milling cutter, Ø 0.5 x 0.7 x 6 x 50 mm, HA shaft
Item no: 1016401 103

Online price:

Available in 8-10 working days.

Application
High-precision miniature torus milling cutter with long neck for process reliability in machining stainless steels, titanium, nickel and cobalt alloys.

Execution
  • Ultra-fine grain cemented carbide
  • Tolerance: < diameter 0.7 mm = 0/-0.012 mm and < diameter 4 mm = 0/-0.020 mm
  • Radius tolerance = 0/-0.010 mm
  • Straight shank, HA
  • With clearance
  • High-performance layer, ULTRA MS
  • Defined cutting edge rounding
  • Centre cutting

Advantage
  • Large selection of clearance lengths
  • Best chip removal and temperature resistance
  • Maximum service life due to ULTRA MS coating


Brand: ATORN
Cutting material: SC
Surface: ULTRA MS
Type: VA
Number of cutting edges (Z): 2 PCS
Twist angle: 40°
Tool holding device: HA parallel shank
Construction length: Long
Cutting edge diameter: 0,5 mm
Cutting edge length: 0,7 mm
Clearance length: 6 mm
Length: 50 mm
Clearance diameter: 0,45 mm
Shank diameter: 4 mm
Edge radius: 0,05 mm
fz stainless steel: 0,004 mm

ATORN-No.: 11861211

EAN no.: 4050293361353

Product Datasheet Datasheet cutting values
