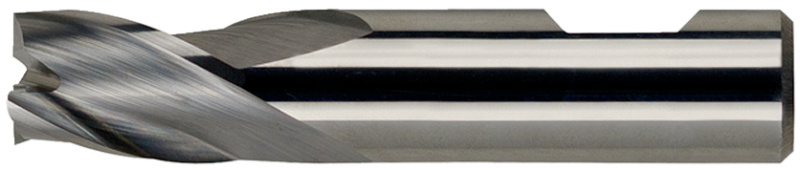

ATORN solid carbide mini end mill, diameter 2.5 x 3.7 x 16 x 50 mm, HA shaft

ATORN solid carbide mini end mill, diameter 2.5 x 3.7 x 16 x 50 mm, HA shaft

ATORN solid carbide mini end mill, diameter 2.5 x 3.7 x 16 x 50 mm, HA shaft
Item no: 1016400 135

Online price:

Available in 8-10 working days.

Application
Ultra-precise mini end mill with long neck for reliable machining of stainless steels, titanium, nickel and copper alloys.

Execution
  • ultra-fine grain cemented carbide
  • tolerance: < dia. 0.7 mm = 0/-0.012 mm and < dia. 4 mm = 0/-0.020 mm
  • HA straight shank
  • with clearance
  • high-performance ULTRA MS layer
  • defined cutting edge rounding
  • centre cutting

Advantage
  • large selection of clearance lengths
  • optimum chip removal and temperature resistance
  • maximum service life thanks to ULTRA MS coating


Brand: ATORN
Cutting material: SC
Surface: ULTRA MS
Type: VA
Number of cutting edges (Z): 2 PCS
Twist angle: 40°
Tool holding device: HA parallel shank
Construction length: Long
Cutting edge diameter: 2,5 mm
Cutting edge length: 3,7 mm
Clearance length: 16 mm
Length: 50 mm
Clearance diameter: 2,4 mm
Shank diameter: 4 mm
fz stainless steel: 0,02 mm
Overall stainless steel suitability: 1
fitness not iron total: 3
fitness Titan/Nickel/Super total: 1

ATORN-No.: 11861183

EAN no.: 4050293361070

Product Datasheet Datasheet cutting values
