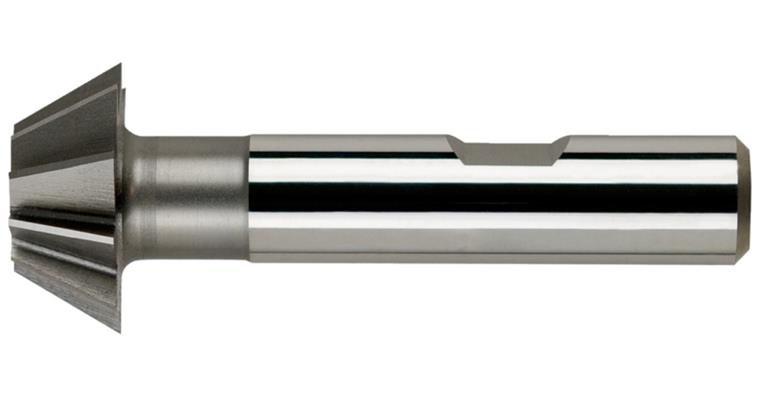

Angle cutter cyl./1835 B DIN 1833 D, a=60° 10 cutting edges HSS-E 20 mm

Angle cutter cyl./1835 B DIN 1833 D, a=60° 10 cutting edges HSS-E 20 mm

Angle cutter cyl./1835 B DIN 1833 D, a=60° 10 cutting edges HSS-E 20 mm
Item no: 1016383 102

Online price:

Available in 11-13 working days.

Application
For materials up to approx. 1000 N/mm² strength, for cutting angle grooves (slide guideways etc.).

Execution
  • Shape D
  • Cutting edge tapering in the direction of the end face
  • For cutting on periphery
  • Straight shank with driving surface in accordance with DIN1835 B
  • Right-cutting
  • Angle tolerance +/-30'


Brand: LIZZARD
Material to be processed: Universal use
Chamfer angle: 60 Degree
Cutting edge diameter: 20 mm
Width of cutting edge: 8,0 mm
Length: 63 mm
Shank diameter: 12 mm
Number of cutting edges (Z): 10 PCS
Type: H
Coolant supply: External
Shank style: Cylindrical DIN 1835-B
Form: D
Cutting direction: Right-hand cutting
