Radius cutter cyl./1835 B short, 2 cutting edges, centre cutting HSS-E 4.0 mm

Radius cutter cyl./1835 B short, 2 cutting edges, centre cutting HSS-E 4.0 mm

Radius cutter cyl./1835 B short, 2 cutting edges, centre cutting HSS-E 4.0 mm
Item no: 1016170 203

Online price:

Still in stock: 8

Application
For normal to solid steels. For cutting semi-circular grooves and pockets with rounded transitions. Suitable as a copy milling cutter.

Execution
  • Short
  • HSSE Co8
  • Uncoated
  • With face radius
  • Right-cutting
  • Right-hand twist 25°
  • Centre cutting
  • Radius tolerance +/- 0.04 mm
  • Straight shank with driving surface in accordance with DIN 1835 B

Advantage
No circular grinding chamfer, therefore better support and clear cut


Brand: LIZZARD
Material to be processed: Universal use
Cutting edge diameter: 4 mm
Radius: 2 mm
Cutting edge length: 7 mm
Length: 51 mm
Shank diameter: 6 mm
Number of cutting edges (Z): 2 PCS
Twist angle: 25°
Rake angle: 10 Degree
Construction length: Short
Coolant supply: External
Shank style: Cylindrical DIN 1835-B
Cutting direction: Right-hand cutting
Tolerance of shank diameter: h6
Tolerance of cutting edge diameter: h10

Versions
loading
Keywords:

You might also be interested in this

  • Radius cutter cyl./1835 B short, 2 cutting edges, centre cutting HSS-E 6 mm
  •
    Radius cutter cyl./1835 B short, 2 cutting edges, centre cutting HSS-E 12 mm
  •
    Radius cutter cyl./1835 B short, 2 cutting edges, centre cutting HSS-E 3.0 mm
  •
    Radius cutter cyl./1835 B short, 2 cutting edges, centre cutting HSS-E 8 mm
  •
    Adapter with sprung pin square drive E6.3 square 1/4 inch x 100 mm
  •
    1/4 inch bit holder with quick-change chuck E 6.3 897/4 R Rapidaptor BiTorsion
  •
    Maschinen-Gewindebohrer Enorm 2-Z/E-X-PM-GLT-1 M10x1,25-6HX
    163,02 €
  • Radius cutter cyl./1835 B short, 2 cutting edges, centre cutting HSS-E 10 mm
  •

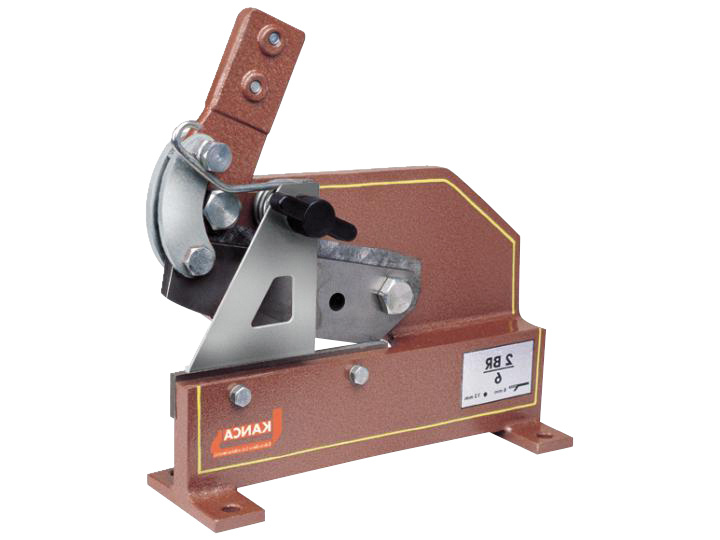

    Metal shears for sheet metal plates and round bars 2BR4 cutting perf. 4/11 mm
  •
