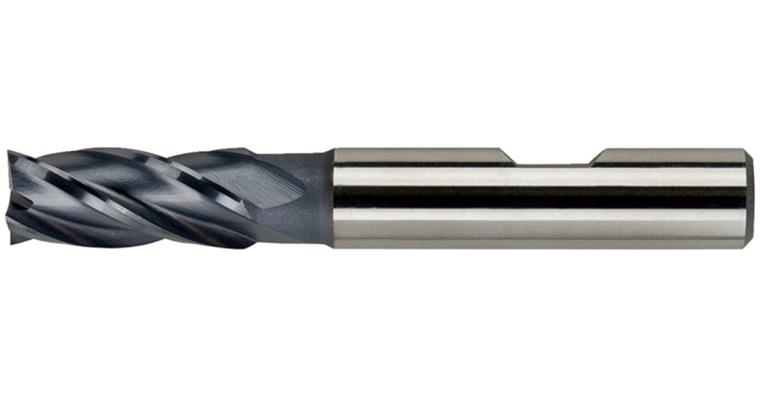

End mill str. DIN 844 B type N short 4 cut edg c-cut HSS-E/TiAlN 10 mm

End mill str. DIN 844 B type N short 4 cut edg c-cut HSS-E/TiAlN 10 mm

End mill str. DIN 844 B type N short 4 cut edg c-cut HSS-E/TiAlN 10 mm
Item no: 1016122 115

Online price:

Available for immediate delivery

Execution
  • Short
  • Right-cutting
  • Right-hand twist 35°
  • 4-6 cutting edges
  • Centre cutting
  • Straight shank with clearance, with driving surface in accordance with DIN 1835 B
  • HSS-E Co8/TiAlN-coated


Brand: LIZZARD
Material to be processed: Universal use
Cutting edge diameter: 10 mm
Cutting edge length: 22 mm
Length: 72 mm
Shank diameter: 10 mm
Clearance diameter: 9,0 mm
Number of cutting edges (Z): 4 PCS
Twist angle: 35°
Type: N
Construction length: Normal
Coolant supply: External
Design of cutting edges: Smoothing
Cutting direction: Right-hand cutting
Tolerance of cutting edge diameter: e8
Tolerance of shank diameter: h6
