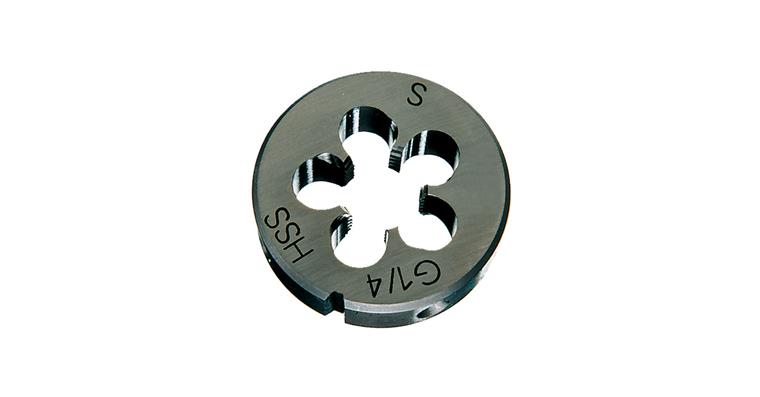

Die, right-cutting DIN EN 24231 with spiral point HSS G 1.

Die, right-cutting DIN EN 24231 with spiral point HSS G 1.

Die, right-cutting DIN EN 24231 with spiral point HSS G 1.
Item no: 1015234 108

Online price:

Still in stock: 5

Application
For cutting G (pipe) threads externally in the steel and non-ferrous metal material groups up to a strength of 700 N/mm².

Execution
  • Closed (pre-slotted)
  • Spiral point for ultra-easy, clean cuts and improved surface quality
  • Chips flow forward in the cutting direction, no clogging of the chip holes
  • Chip angle 15-20°
  • Chamfer approx. 1.75 turns


Brand: LIZZARD
Thread type: Pipe thread
Cutting material: HSS
Thread type x nominal diameter in inches: G 1 in
Number of thread starts per inch: 11
Outer diameter: 65 mm
Height: 18 mm
Cutting direction: Right-hand cutting
EN standard: 24231
Nominal diameter in inches: 1 in
Die mount diameter: 65 mm
Material to be processed: Steel

EAN no.: 4024496027071

Product Datasheet
