Carbide thermic drill bit Flowdrill standard long diameter 2.7 mm M3 with collar

Carbide thermic drill bit Flowdrill standard long diameter 2.7 mm M3 with collar

Carbide thermic drill bit Flowdrill standard long diameter 2.7 mm M3 with collar
Item no: 1014755 102

Online price:

Available in 4-6 working days.

Application
The thermic drill bit can be used in all common materials such as steel, stainless steel, aluminium, copper, brass and in high-strength special materials.

Execution
  • This tool creates a ring-shaped bulge on the surface, as the high-flowing material is simply beaded over
  • This produces a maximum passage length
  • A flowdrill is a carbide tool used to create additional wall thickness by displacing raw material
  • This locally produced extra material thickness can be used for a load-bearing thread, as a soldering and welding zone, for sealing surfaces or as a bearing point
  • The tool diameter can be between 1 and 40 mm and the wall thickness to be machined between 0.5 and 10 mm

Advantage
  • Localised increase in wall thickness
  • Sufficient thread length
  • Faster process cycle
  • High accuracy and long service life
  • Suitable for series production, e.g. on CNC
    • Chipless


Brand: FLOWDRILL
Thread dimension: M3
Core hole diameter: 2,7 mm
Min./max. material thickness: 1.6-2.4 mm
Shank diameter: 6 mm
Effective length: 6,7 mm
Min./max. rotation speed: 2600-3000 U/min(rpm)
Max. feed speed: 100 mm/min
Power rating: 0,6 kW
Cutting material: Carbide
Max. material thickness: 2,4 mm
Type: Long/standard

Manufacturer part no.: 027L000

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • Carbide thermic drill bit Flowdrill standard short dia. 2.7 mm M3 with collar
  •

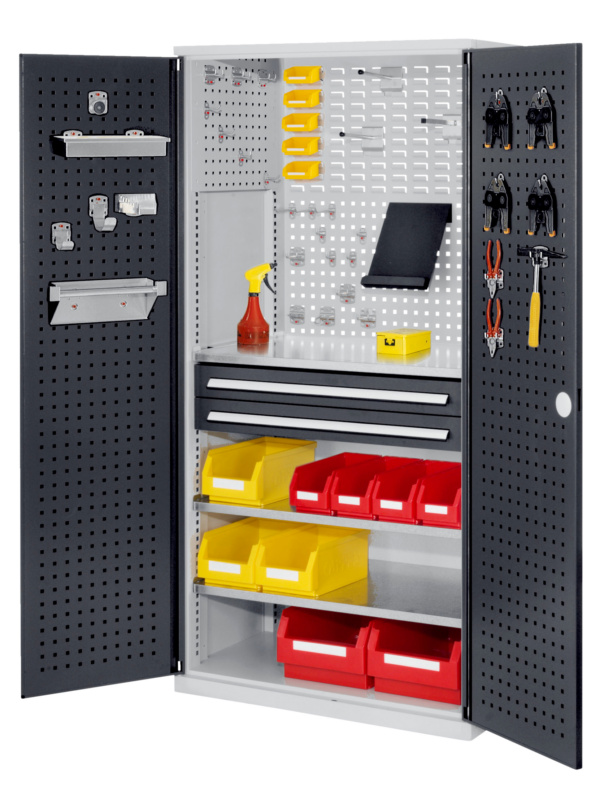

    Cabinet with perforated panel door, MOD.7, 7035/7016
  •
