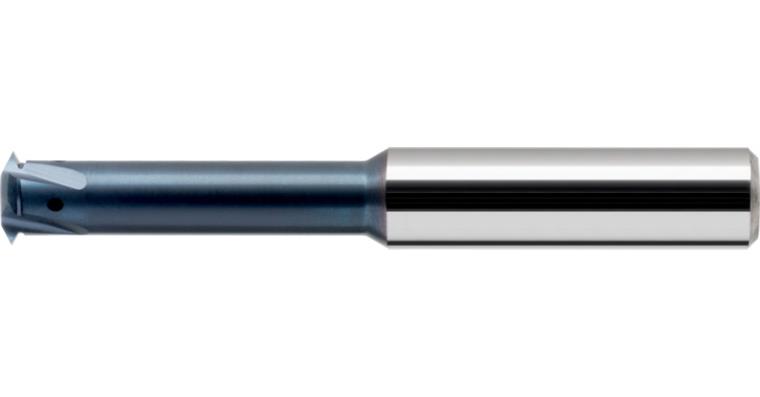

Thrd mill cttr, singl-edg cttr, sb-prf, 60°, wth intrnl clng, 0.5-0.8 mm, 12.0mm

Thrd mill cttr, singl-edg cttr, sb-prf, 60°, wth intrnl clng, 0.5-0.8 mm, 12.0mm

Thrd mill cttr, singl-edg cttr, sb-prf, 60°, wth intrnl clng, 0.5-0.8 mm, 12.0mm
Item no: 1014642 109

Online price:

Available in 4-6 working days.

Application
For producing metric right-hand and left-hand threads on CNC machines, in steel, stainless steel, non-ferrous metals, cast iron and special alloy material groups up to a strength of 1500 N/mm².

Execution
Single-edge cutter in sub-profile design

Advantage
  • Innovative cutting geometry for very high dimensional accuracy, process reliability and chip removal.
  • High-quality cutting material and cutting edge finish for very high service life requirements
  • Low tool costs thanks to high variability in the thread diameter, just one tool required for right-hand thread and left-hand thread


Brand: ATORN
Min./max. pitch internal: 0.5-0.8 mm
Min./max. pitch external: 0.4-0.8 mm
Min./max. number of thread starts per inch internal: 56-28
Min./max. number of thread starts per inch external: 64-32
Cutting edge diameter: 12 mm
Shank diameter: 12 mm
Effective length of thread milling (l2): 38 mm
Length (l1): 84 mm
Coolant supply: Internal
Number of grooves: 5 PCS
Machining type: Inside | Outside
Number of cutting edges: 1 PCS

ATORN-No.: 11940428

EAN no.: 4050293208177

Product Datasheet Datasheet cutting values
