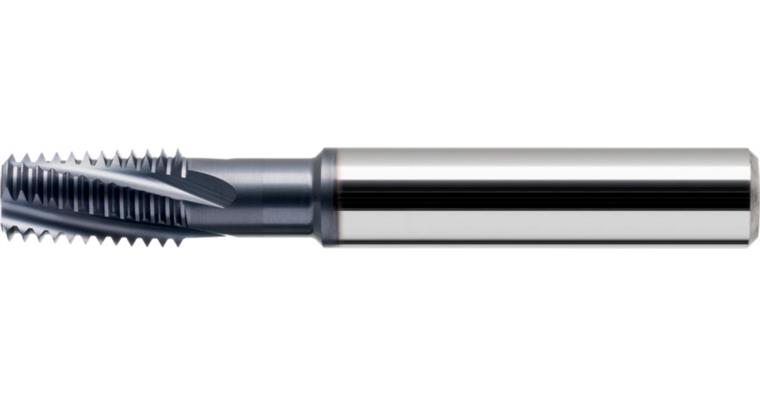

ATORN thread milling cutter SC-TIALN MF22 3 mm pitch 2xD 16.0mm

ATORN thread milling cutter SC-TIALN MF22 3 mm pitch 2xD 16.0mm

ATORN thread milling cutter SC-TIALN MF22 3 mm pitch 2xD 16.0mm
Item no: 1014633 111

Online price:

Available in 4-6 working days.

Application
For producing metric right-hand and left-hand threads on CNC machines in through holes and blind holes in the steel, stainless steel, non-ferrous metals, cast iron and special alloy material groups up to a strength of 1500 N/mm².

Execution
With collar recess.

Advantage
  • Innovative cutting geometry for very high dimensional accuracy, process reliability and chip removal.
  • Deep thread depth achievable due to collar recess between thread part and shank.


Brand: ATORN
Tool holding device: HA parallel shank
Material to be processed: Universal use
Cutting material: SC
Surface: TiAlN
Hole type: Clearance/blind hole ≤ 2xD
Coolant supply: Internal
Cutting edge diameter (d1): 16 mm
Pitch: 3 mm
Suitable from thread size: MF22
Length (l1): 105 mm
Cutting edge length (l2): 30 mm
Effective length of thread milling (l3): 45 mm
Shank diameter: 16 mm
Number of cutting edges: 4 PCS
f steel 1000: 0,08 mm/r

ATORN-No.: 11945994

EAN no.: 4050293264234

Product Datasheet Datasheet cutting values
