ATORN multi-range thr.mill.cutt. SC-TIAlN TH/BH 2 x D 10.0 mm 1.5 mm 21.8 mm HA

ATORN multi-range thr.mill.cutt. SC-TIAlN TH/BH 2 x D 10.0 mm 1.5 mm 21.8 mm HA

ATORN multi-range thr.mill.cutt. SC-TIAlN TH/BH 2 x D 10.0 mm 1.5 mm 21.8 mm HA
Item no: 1014632 222

Online price:

Still in stock: 1

Application
For producing metric right-hand and left-hand threads on CNC machines in through holes and blind holes in the steel, stainless steel, non-ferrous metals, cast iron and special alloy material groups up to a strength of 1500 N/mm².

Execution
Precision-ground thread milling cutter

Advantage
Innovative cutting geometry for very high dimensional accuracy, process reliability and chip removal.


Brand: ATORN
Material to be processed: Universal use
Cutting material: SC
Surface: TiAlN
Hole type: Clearance/blind hole ≤ 2xD
Coolant supply (IK): Internal
Tool holding device: HA parallel shank
Cutting edge diameter (d1): 10 mm
Pitch: 1,5 mm
Suitable for metric fine threads from: MF14
Length (L1): 73 mm
Cutting edge length (l2): 21,8 mm
Shank diameter: 10 mm
Number of cutting edges: 4 PCS
f steel 1000: 0,07 mm/r

ATORN-No.: 11940479

EAN no.: 4050293211139

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • Short twist drill bit DIN 338 type N HSS precision roll forged 3.9 mm
  • Solid carbide thread cutter pitch 1.00 mm M 22 l=32.0 mm with IC
  • Solid carbide thread cutter pitch 1.50 mm M 14 l=16.0 mm with IC
  • ATORN multi-range thr.mill.cutt. SC-TIAlN TH/BH 2 x D 12.0 mm 1.5 mm 26.3 mm HA
  • ATORN multi-range thr.mill.cutt. SC-TIAlN TH/BH 2 x D 16.0 mm 1.5 mm 33.8 mm HA
  • ATORN multi-range thr.mill.cutt. SC-TIAlN TH/BH 2 x D 9.0 mm 1.75 mm 20.1 mm HA
  • ATORN multi-range thr.mill.cutt. SC-TIAlN TH/BH 2 x D 9.0 mm 1.75 mm 28.8 mm HA
  • ATORN thr. mill. cutt., SC-TIAlN TH/BH 2xD 3.1 mm 0.7 mm 58 mm HA hard
  • Manual selector switch with magnet control cable 4-2 DUO hose length 3000 mm
  • ATORN location pin hardened steel M5
  • ATORN dip-insulated tweezers 155 mm curved hardened

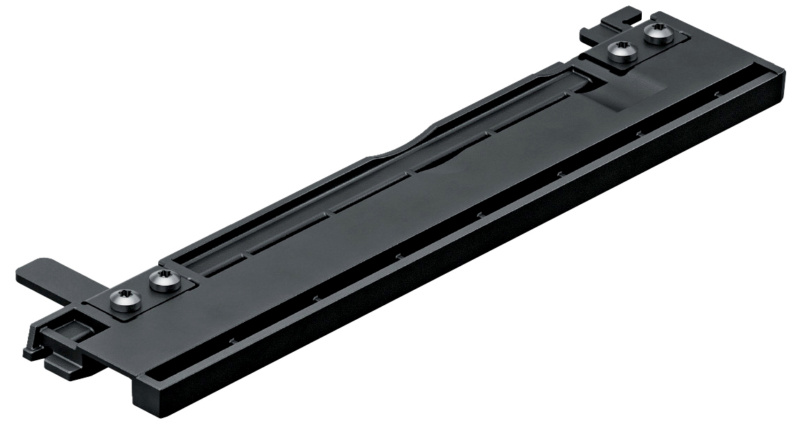

  • Führungsschienenadapter f Handkreissägen
