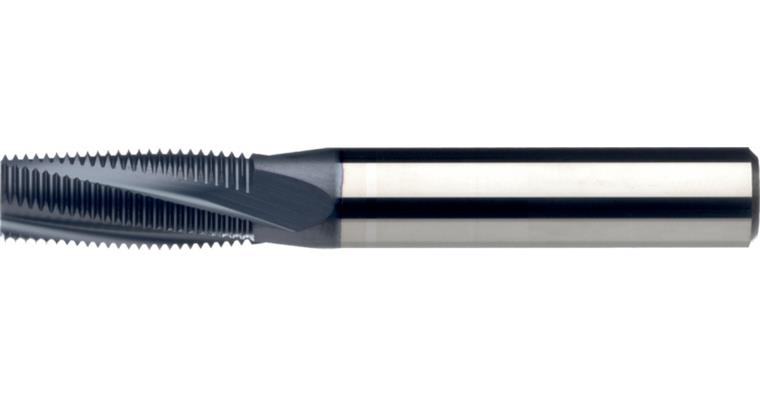

ATORN multi-range thr.mill.cutt. SC-TIAlN TH/BH 2 x D 10.0 mm 1 mm 24.5 mm HA

ATORN multi-range thr.mill.cutt. SC-TIAlN TH/BH 2 x D 10.0 mm 1 mm 24.5 mm HA

ATORN multi-range thr.mill.cutt. SC-TIAlN TH/BH 2 x D 10.0 mm 1 mm 24.5 mm HA
Item no: 1014632 213

Online price:

Still in stock: 2

Application
For producing metric right-hand and left-hand threads on CNC machines in through holes and blind holes in the steel, stainless steel, non-ferrous metals, cast iron and special alloy material groups up to a strength of 1500 N/mm².

Execution
Precision-ground thread milling cutter

Advantage
Innovative cutting geometry for very high dimensional accuracy, process reliability and chip removal.


Brand: ATORN
Material to be processed: Universal use
Cutting material: SC
Surface: TiAlN
Hole type: Clearance/blind hole ≤ 2xD
Coolant supply (IK): Internal
Tool holding device: HA parallel shank
Cutting edge diameter (d1): 10 mm
Pitch: 1 mm
Suitable for metric fine threads from: MF12
Length (L1): 73 mm
Cutting edge length (l2): 24,5 mm
Shank diameter: 10 mm
Number of cutting edges: 4 PCS
f steel 1000: 0,07 mm/r

ATORN-No.: 11940482

EAN no.: 4050293211160

Product Datasheet Datasheet cutting values
