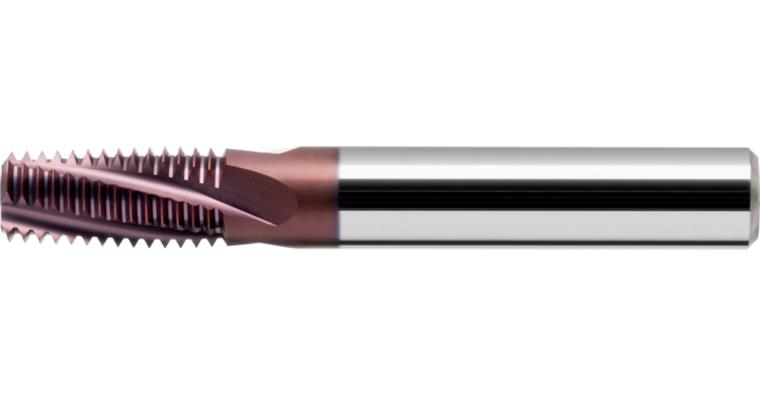

ATORN thread milling cutter SC-TIAlN 1.5 mm 7.0 mm 24.8 mm

ATORN thread milling cutter SC-TIAlN 1.5 mm 7.0 mm 24.8 mm

ATORN thread milling cutter SC-TIAlN 1.5 mm 7.0 mm 24.8 mm
Item no: 1014632 120

Online price:

Still in stock: 2

Application
For producing metric right-hand and left-hand threads on CNC machines in through holes and blind holes in the steel, stainless steel, non-ferrous metals, cast iron and special alloy material groups up to a strength of 1500 N/mm².

Execution
Precision-ground thread milling cutter

Advantage
  • Innovative cutting geometry for very high dimensional accuracy, process reliability and chip removal.
  • High-performance coating and cemented carbide ensure long service life


Brand: ATORN
Material to be processed: Universal use
Cutting material: SC
Surface: TiAlN
Hole type: Clearance/blind hole ≤ 2xD
Coolant supply (IK): External
Tool holding device: HA parallel shank
Cutting edge diameter (d1): 7 mm
Pitch: 1,5 mm
Suitable for metric fine threads from: MF12
Suitable for metric threads from: M10
Length (L1): 76 mm
Cutting edge length (l2): 24,8 mm
Shank diameter: 8 mm
Number of cutting edges: 3 PCS
f steel 1000: 0,06 mm/r

ATORN-No.: 11940184

EAN no.: 4050293206135

Product Datasheet Datasheet cutting values
