Application
For producing metric right-hand threads and left-hand threads with countersink on CNC machines in blind holes and through holes, in steel, stainless steel, non-ferrous metals, cast iron and special alloy material groups up to a strength of 1500 N/mm².

Execution

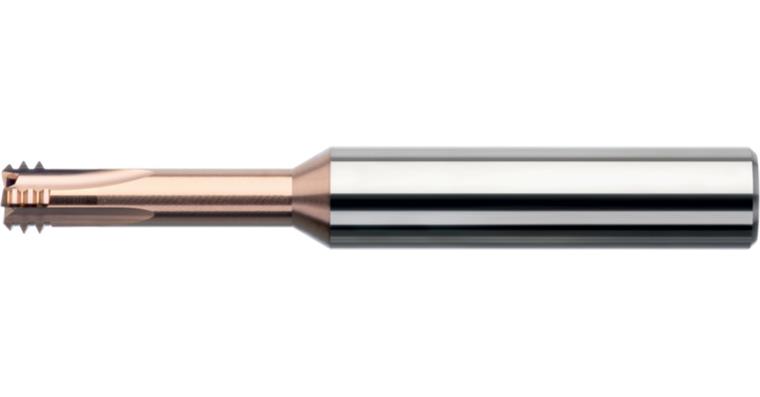

Precision-ground drill thread milling cutter with chamfer for maximum requirements in terms of process reliability and service life

Advantage

• Innovative cutting geometry for very high dimensional accuracy, process reliability and chip removal
• High-quality cutting material and cutting edge finish for very high service life requirements
• Significantly optimised process times, as bore, thread and countersink are produced in one step

Notes
The tool must be used in an anti-clockwise rotation!
