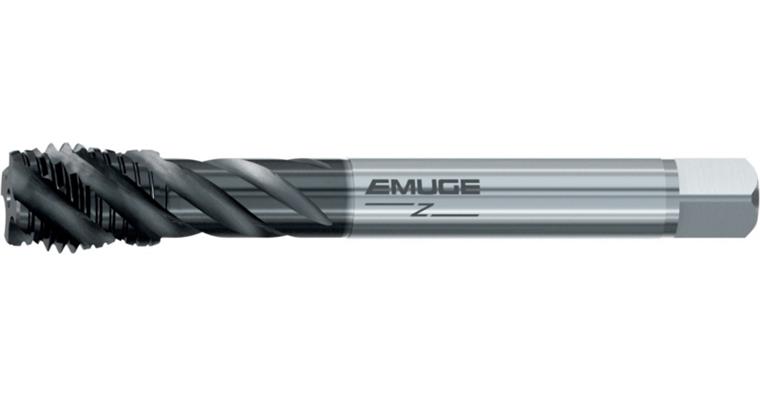

Maschinen-Gewindebohrer Enorm 2-Z-X-PM-GLT-1 G 3/4-X

Maschinen-Gewindebohrer Enorm 2-Z-X-PM-GLT-1 G 3/4-X

Maschinen-Gewindebohrer Enorm 2-Z-X-PM-GLT-1 G 3/4-X
Item no: 1014592 105

Online price:

Available in 5-7 working days.

Application
- Whitworth-Rohrgewinde zylindrisch
- Grundlöcher
- Max. Bohrtiefe 3xD
- Für universelle Anwendung in nahezu allen Werkstoffen

Execution
  • Für den Einsatz in CNC-gesteuerten Maschinen ausgelegt.
  • Erhöhte Toleranz für mehr Standweg in abrasiven oder klemmenden Werkstoffen.
  • Konisch abgesetztes Führungsgewinde
  • Längere Nuten
  • DIN-Anschnitt Form C (2-3 Gänge)
  • HSSE-PM GLT-1


Brand: EMUGE
Material to be processed: Universal use
Thread type x nominal diameter in inches: G 3/4 in
Max. thread depth: 3xD
Thread dimension: G 3/4 inch - 14
Number of thread starts per inch: 14
Cutting material: HSSE-PM
Surface: TiAlN plus
Hole type: Blind hole ≤ 3xD
Lead angle shape: C
Length: 140 mm
Cutting edge length: 20 mm
Core hole diameter: 24,50 mm
Shank diameter: 20,0 mm
Shank square: 16 mm
Thread type: Pipe thread
Type: GLT-1
Twist angle: 45° (right)
DIN: 5156
Coolant supply: External
Nominal diameter in inches: 3/4 in
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting

Manufacturer part no.: C576A601.4040

Product Datasheet Datasheet cutting values
