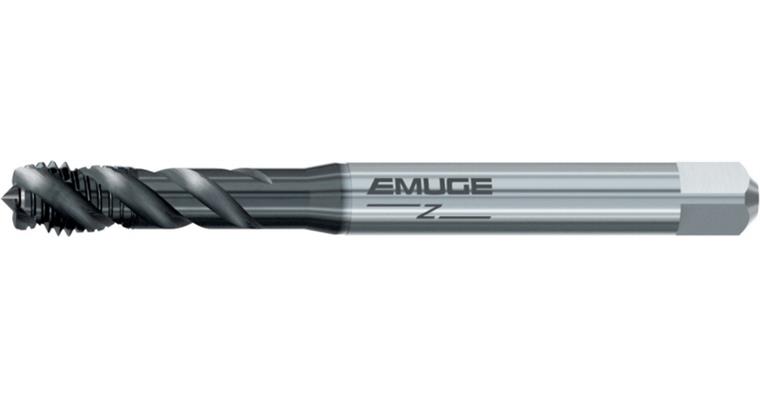

Machine tap Enorm 1-Z-X-PM-GLT-1 3/8-24 UNF-2BX

Machine tap Enorm 1-Z-X-PM-GLT-1 3/8-24 UNF-2BX

Machine tap Enorm 1-Z-X-PM-GLT-1 3/8-24 UNF-2BX
Item no: 1014579 104

Online price:

Available in 5-7 working days.

Application
- UNF thread
- Blind holes
- Max. drilling depth 3xD
- For universal application in almost all materials

Execution
  • Designed for use in CNC-controlled machines.
  • Increased tolerance for longer tool life in materials that are abrasive or tend to jam
  • Tapered offset guide thread
  • Longer flutes
  • DIN chamfer shape C (2-3 turns)
  • HSS-E-PM GLT-1


Brand: EMUGE
Material to be processed: Universal use
Thread type x nominal diameter in inches: UNF 3/8 in
Max. thread depth: 3xD
Thread dimension: 3/8 inch - 24UNF
Number of thread starts per inch: 24
Cutting material: HSSE-PM
Surface: TiAlN plus
Hole type: Blind hole ≤ 3xD
Tolerance of screw taps (Tol.): 2BX
Lead angle shape: C
Length: 90 mm
Cutting edge length: 10 mm
Core hole diameter: 8,50 mm
Shank diameter: 10 mm
Shank square: 8 mm
Thread type: UNF
Type: GLT-1
Twist angle: 45° (right)
Coolant supply: External
Nominal diameter in inches: 3/8 in
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting

Manufacturer part no.: B576A601.5045

Product Datasheet Datasheet cutting values
