Machine tap Enorm 1-Z-X-PM-GLT-1 No.8-32 UNC-2BX

Machine tap Enorm 1-Z-X-PM-GLT-1 No.8-32 UNC-2BX

Machine tap Enorm 1-Z-X-PM-GLT-1 No.8-32 UNC-2BX
Item no: 1014561 103

Online price:

Available in 5-7 working days.

Application
- UNC thread
- Blind holes
- Max. drilling depth 3xD
- For universal application in almost all materials

Execution
  • Designed for use in CNC-controlled machines.
  • Increased tolerance for longer tool life in materials that are abrasive or tend to jam
  • Tapered offset guide thread
  • Longer flutes
  • DIN chamfer shape C (2-3 turns)
  • HSS-E-PM GLT-1


Brand: EMUGE
Material to be processed: Universal use
Max. thread depth: 3xD
Thread dimension: No.8 - 32UNC
Number of thread starts per inch: 32
Cutting material: HSSE-PM
Surface: TiAlN plus
Hole type: Blind hole ≤ 3xD
Tolerance of screw taps (Tol.): 2BX
Lead angle shape: C
Length: 63 mm
Cutting edge length: 8 mm
Core hole diameter: 3,50 mm
Shank diameter: 4,5 mm
Shank square: 3,4 mm
Thread type: UNC
Type: GLT-1
Twist angle: 45° (right)
Coolant supply: External
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting

Manufacturer part no.: B576A601.5006

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

You might also be interested in this

  • ATORN protractor with double blade 150 x 300 mm
  •
    ATORN protractor with double blade 200 x 400 mm
  •

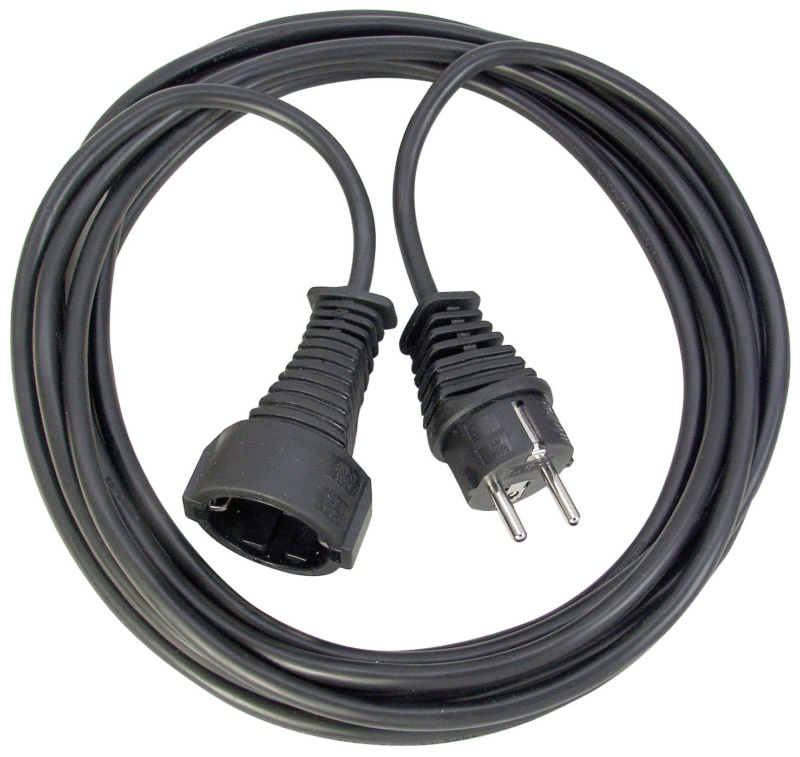

    Plastic cable short extension H05VV-F 3G1.5 5 m
  •
