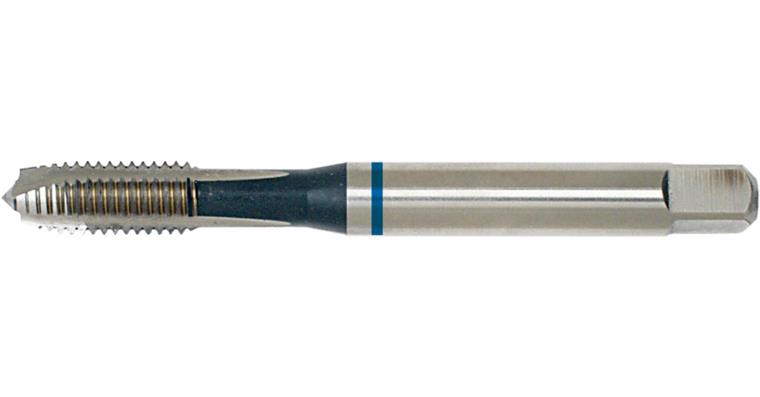

Through hole screw tap UNC DIN 376 shape B 3xD HSS-E 1/2 inch

Through hole screw tap UNC DIN 376 shape B 3xD HSS-E 1/2 inch

Through hole screw tap UNC DIN 376 shape B 3xD HSS-E 1/2 inch
Item no: 1014560 114

Online price:

Still in stock: 4

Application
- UNC thread
- Through holes
- Max. drilling depth 3xD
- Steels up to 800 N/mm²

Execution
  • straight grooved
  • DIN type B (3-3.5 chamfer threads)
  • HSSE


Brand: ATORN
Material to be processed: Steel
Thread type: UNC
Thread dimension: 1/2 inch - 13UNC
Hole type: Clearance hole ≤ 3xD
Lead angle shape: B
Length: 110 mm
Cutting material: HSSE
Surface: Uncoated
Twist angle: 0°
DIN: 376
Shank diameter: 9 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 10,80 mm
Coolant supply: External
Shank square: 7 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 2
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3
