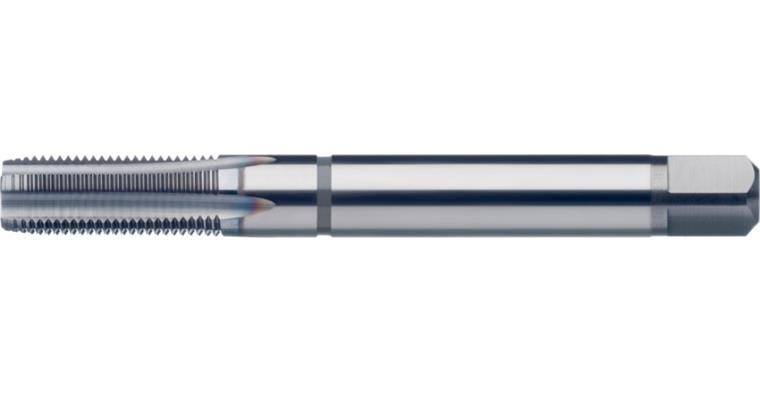

ATORN screw tap HSSE-PM DIN 376 0° G 1/2 D 1.5xD CNC H

ATORN screw tap HSSE-PM DIN 376 0° G 1/2 D 1.5xD CNC H

ATORN screw tap HSSE-PM DIN 376 0° G 1/2 D 1.5xD CNC H
Item no: 1014540 104

Online price:

Available in 6-8 working days.

Application
For producing pipe threads on CNC machines in through and blind holes in the hardened steel material group up to 63 HRC.

Advantage
Long service life and good process reliability thanks to innovative rake and coating for machining hardened steel


Brand: ATORN
Material to be processed: Hard material | Hardened steel
Thread type: Pipe thread
Thread dimension: G 1/2 inch - 14
Thread type x nominal diameter in inches: G 1/2 in
Number of thread starts per inch: 14
Hole type: Clearance/blind hole ≤ 1.5xD
Lead angle shape: D
Length: 140 mm
Cutting material: HSSE-PM
Surface: TiCN
Twist angle: 0°
Shank diameter: 20 mm
Core hole diameter: 19 mm
Type: H MAX Control
Coolant supply: External
Shank square: 16 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 3
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 1
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10487380

EAN no.: 4066107016654

Product Datasheet
