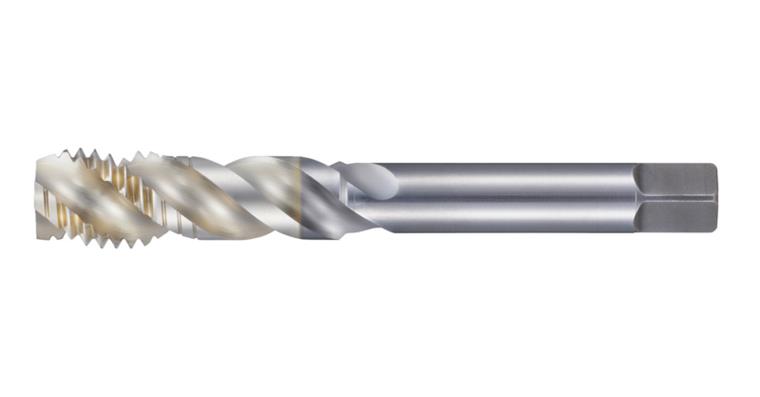

Blind hole screw tap SGSP 45° HSS-PM-SG 3xD DIN 374 shape C 6H MF 8x1.00

Blind hole screw tap SGSP 45° HSS-PM-SG 3xD DIN 374 shape C 6H MF 8x1.00

Blind hole screw tap SGSP 45° HSS-PM-SG 3xD DIN 374 shape C 6H MF 8x1.00
Item no: 1014520 007

Online price:

Still in stock: 2

Application
Universal application

Execution
  • Metric fine thread
  • Blind-hole thread
  • Right-cutting
  • Spiral-fluted approx. 45°
  • High-quality HSS-PM with SG coating (TiCN multi-layer coating)

Notes
Screw tap for the most demanding applications. For a long service life and process reliability!

Brand: NACHI
Material to be processed: Universal use
Thread type x nominal diameter: MF8
Max. thread depth: 3xD
Thread dimension: M8
Pitch: 1 mm
Cutting material: HSS-PM
Surface: TiCN
Hole type: Blind hole ≤ 3xD
Tolerance of screw taps (Tol.): 6H
Lead angle shape: C
Length: 90 mm
Cutting edge length: 12,4 mm
Core hole diameter: 7,00 mm
Shank diameter: 6 mm
Shank square: 4,9 mm
Thread type: Metric fine thread
Type: SGSP
Twist angle: 45° (right)
DIN: 374
Coolant supply: External
Nominal diameter: 8 mm
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting

Manufacturer part no.: L6806 MF8X1,00

Product Datasheet Datasheet cutting values
