ATORN screw tap HSSE V3 C 40° MF8 x 0.75 ISO2 2.5xD CNC UNI

ATORN screw tap HSSE V3 C 40° MF8 x 0.75 ISO2 2.5xD CNC UNI

ATORN screw tap HSSE V3 C 40° MF8 x 0.75 ISO2 2.5xD CNC UNI
Item no: 1014517 106

Online price:

Still in stock: 8

Application
For producing fine metric threads on CNC machines or conventional machines in blind holes in the steel, stainless steel, non-ferrous metals, cast iron and special alloy material groups up to a strength of 1200 N/mm².

Advantage
  • Universal use for maximum flexibility of application
  • Innovative cutter geometry ensures high process reliability even in difficult machining conditions


Brand: ATORN
Material to be processed: Universal use
Thread type: Metric fine thread
Thread type x nominal diameter: MF8
Tolerance of screw taps (Tol.): ISO 2 (6H)
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 80 mm
Cutting material: HSSE V3
Surface: Vaporised
Pitch: 0,75 mm
Twist angle: 40° (right)
DIN: 374
Shank diameter: 6 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 7,2 mm
Type: UNI MAX 40 Control
Shank square: 4,9 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 1
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 2
fitness Titan/Nickel/Super total (ISO S): 2
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 12280177

EAN no.: 4050293426113

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN hand tap VS HSSE A 352 0° M10 1.5 mm ISO2 D/S 3xD VA
  •
    ATORN hand tap MS HSSE D 352 0° M10 1.5 mm ISO2 D/S 3xD VA
    31,77 €
  • ATORN screw tap HSSE TiN B 376 0° M16 2 mm ISO2 D 3xD CNC P
  •
    ATORN screw tap HSSE B 374 0° MF22 1.5 mm ISO2 D 3xD CNC P
  •
    ATORN screw tap HSSE B 374 0° MF30 1.5 mm ISO2 D 3xD CNC P
    155,57 €
  • ATORN thread mould with IC HSSE-PM Carbo DIN 371 M8 x 1.25 mm ISO 3 3xD
    121,09 €
  • ATORN thread mould with IC HSSE-PM Carbo DIN 376 M16 x 2.0 mm ISO 3 3xD
  •

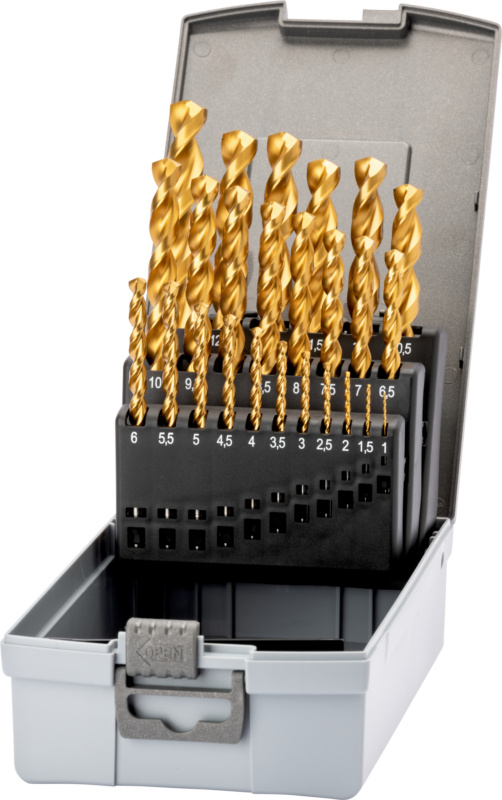

    ATORN twist drill bit set TLP HSSE-TIN DIN 338 1.0-13.0 mm 0.5 in box
