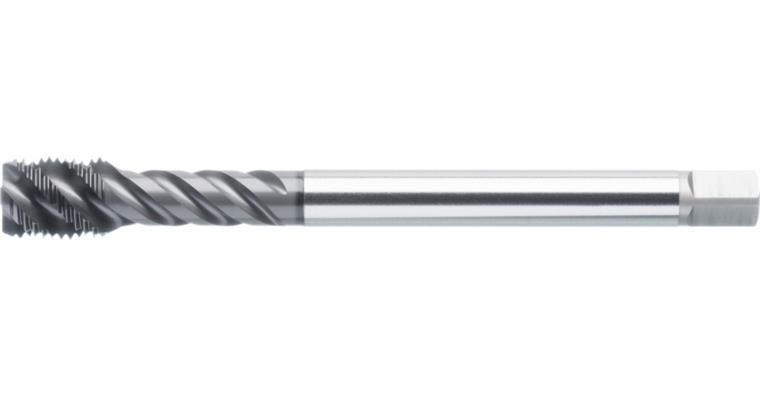

ATORN screw tap HSSE-PM ULTRA HL C 374 50° MF12x1.5 ISO2 2.5xD CNC

ATORN screw tap HSSE-PM ULTRA HL C 374 50° MF12x1.5 ISO2 2.5xD CNC

ATORN screw tap HSSE-PM ULTRA HL C 374 50° MF12x1.5 ISO2 2.5xD CNC
Item no: 1014513 106

Online price:

Still in stock: 6

Application
For producing fine metric threads on CNC machines or conventional machines in through holes in the steel, stainless steel, non-ferrous metals, cast and special alloy material groups up to a strength of 1200 N/mm².

Advantage
  • Universal use for maximum flexibility of application
  • Innovative cutter geometry ensures high process reliability even in difficult machining conditions


Brand: ATORN
Material to be processed: Universal use
Thread type: Metric fine thread
Thread type x nominal diameter: MF12
Tolerance of screw taps (Tol.): ISO 2X (6HX)
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 100 mm
Cutting material: HSSE-PM
Surface: ULTRA HL
Pitch: 1,5 mm
Twist angle: 50° (right)
DIN: 374
Shank diameter: 9 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 10,5 mm
Type: UNI MAX 50HL Speed
Coolant supply: External
Shank square: 7 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 1
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 2
fitness Titan/Nickel/Super total (ISO S): 1
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 12280076

EAN no.: 4050293425109

Product Datasheet Datasheet cutting values
