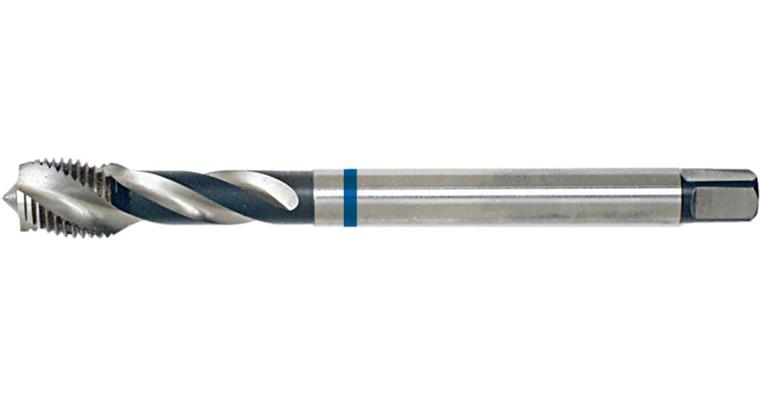

Blind hole screw tap MF DIN 374 40° shape C 2.5xD HSS-E MF8x1.00

Blind hole screw tap MF DIN 374 40° shape C 2.5xD HSS-E MF8x1.00

Blind hole screw tap MF DIN 374 40° shape C 2.5xD HSS-E MF8x1.00
Item no: 1014508 109

Online price:

Available for immediate delivery

Application
- Metric fine thread
- Blind holes
- Max. drilling depth 2.5xD
- Steels up to 800 N/mm²

Execution
  • Strong chip transport to the rear
  • Minimal thread radial relief
  • Tolerance range 6H
  • DIN 374
  • DIN type C (2-3 chamfer threads)
  • HSSE


Brand: ATORN
Material to be processed: Steel
Thread type: Metric fine thread
Thread dimension: M8 x 1
Thread type x nominal diameter: MF8
Tolerance of screw taps (Tol.): 6H
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 90 mm
Cutting material: HSSE
Surface: Uncoated
Pitch: 1 mm
Twist angle: 40° (right)
DIN: 374
Shank diameter: 6 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 7,00 mm
Coolant supply: External
Shank square: 4,9 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3
