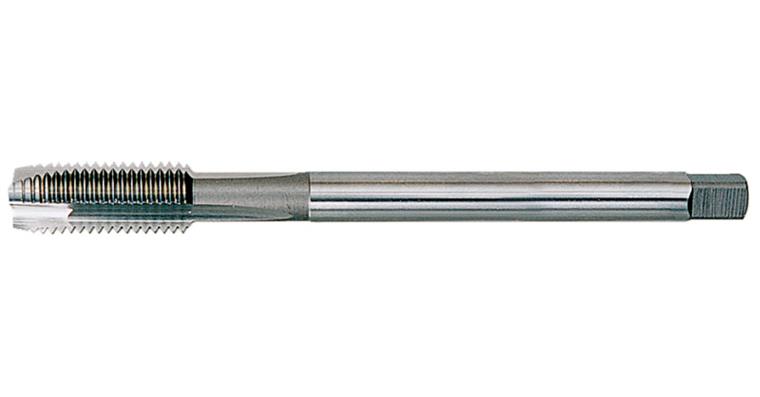

Through hole screw tap MF DIN 374 shape B 2.5xD HSS-E MF8x0.75

Through hole screw tap MF DIN 374 shape B 2.5xD HSS-E MF8x0.75

Through hole screw tap MF DIN 374 shape B 2.5xD HSS-E MF8x0.75
Item no: 1014504 108

Online price:

Available in 5-7 working days.

Application
- Metric fine thread
- Through holes
- Max. drilling depth 2.5xD
- Steels up to 800 N/mm²

Execution
  • Spiral point
  • Tolerance field 6H
  • DIN 374
  • DIN chamfer shape B (3.5-5 turns)
  • HSS-E

Notes
Cost-effective design.

Brand: LIZZARD
Material to be processed: Steel
Thread type x nominal diameter: MF8
Max. thread depth: 2.5xD
Thread dimension: M8
Pitch: 0,75 mm
Cutting material: HSSE
Surface: Uncoated
Hole type: Blind hole ≤ 2.5xD
Tolerance of screw taps (Tol.): 6H
Lead angle shape: B
Length: 80 mm
Cutting edge length: 18 mm
Core hole diameter: 7,25 mm
Shank diameter: 6 mm
Shank square: 4,9 mm
Thread type: Metric fine thread
Twist angle: 0°
DIN: 374
Coolant supply: External
Nominal diameter: 8 mm
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting
