Through hole screw tap MF DIN 374 shape C 2.5xD HSS-E MF40x1.50

Through hole screw tap MF DIN 374 shape C 2.5xD HSS-E MF40x1.50

Through hole screw tap MF DIN 374 shape C 2.5xD HSS-E MF40x1.50
Item no: 1014501 149

Online price:

Still in stock: 2

Application
- Metric fine thread
- Through holes
- Max. drilling depth 2.5xD
- Steels up to 800 N/mm²

Execution
  • Spiral point
  • Tolerance field 6H
  • DIN 374
  • DIN chamfer shape B (3.5-5 turns)
  • HSS-E


Brand: LIZZARD
Material to be processed: Steel
Thread type x nominal diameter: MF40
Max. thread depth: 2.5xD
Thread dimension: M40 x 1,5
Pitch: 1,5 mm
Cutting material: HSSE
Surface: Uncoated
Hole type: Clearance hole
Tolerance of screw taps (Tol.): 6H
Lead angle shape: B
Length: 170 mm
Cutting edge length: 30 mm
Core hole diameter: 38,50 mm
Shank diameter: 32 mm
Shank square: 24 mm
Thread type: Metric fine thread
Twist angle: 0°
DIN: 374
Coolant supply: External
Nominal diameter: 40 mm
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting

Versions
loading
Keywords:

[Text nicht gefunden]

  • Platform ladder 6 steps including platform platform height 1.37 m
  •
    ATORN machine thread former HSSE TiCN DIN 374 MF14 x 1.25 mm 6HX
  •
    Extra-long twist drill bit DIN 1870 type FN HSS ground 28.0 x 580 mm
  •
    ATORN screw tap HSSE-PM Carbo C 376 40° M24 3 mm ISO2 S 2.5xD CNC N
  •

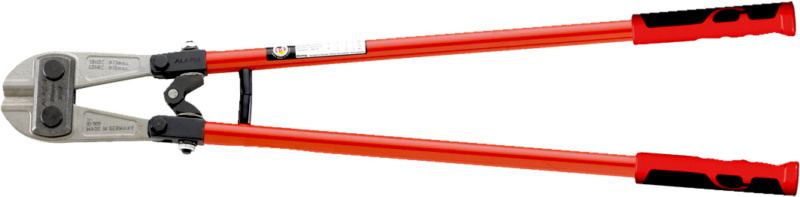

    KNIPEX bolt cutters 910 mm with two-component handle
  •
