Blind hole screw tap M DIN 371 40° shape C 2.5xD PM to 1,400 N/mm2 M3

Blind hole screw tap M DIN 371 40° shape C 2.5xD PM to 1,400 N/mm2 M3

Blind hole screw tap M DIN 371 40° shape C 2.5xD PM to 1,400 N/mm2 M3
Item no: 1014454 103

Online price:

Available for immediate delivery

Application
- Metric thread
- Blind holes
- Max. drilling depth 2.5xD
- Steels up to 1,400 N/mm²

Execution
  • PM screw tap for increased service life
  • Shortened thread section, larger radial relief
  • Tolerance range 6H
  • Right-hand spiral grooves approx. 40°
  • DIN type C (2-3 chamfer threads)
  • HSSE-PM


Brand: ATORN
Material to be processed: Steel
Thread type: Metric thread
Thread dimension: M3
Thread type x nominal diameter: M3
Tolerance of screw taps (Tol.): 6H
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 56 mm
Cutting material: HSSE-PM
Surface: Uncoated
Pitch: 0,5 mm
Twist angle: 40° (right)
DIN: 371
Shank diameter: 3,5 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 2,50 mm
Coolant supply: External
Shank square: 2,7 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 1
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 11290405

EAN no.: 4050293134056

Product Datasheet
Versions
loading
Keywords:

You might also be interested in this

  • Blind hole screw tap M DIN 371 40° shape C 2.5xD PM to 1,400 N/mm2 M4
  •

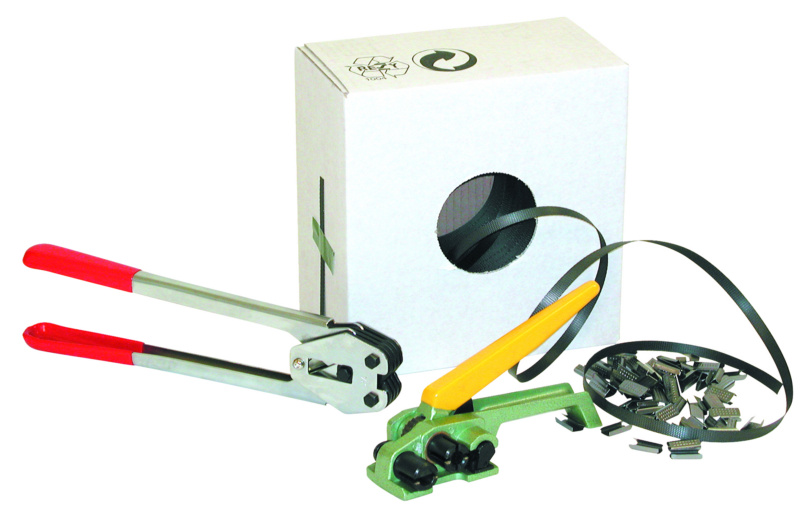

    PET plastic tape set LA 16 mm
  •
