Blind hole screw tap M DIN 371 40° shape C 2xD HSS-E-TiN for VA steels M8

Blind hole screw tap M DIN 371 40° shape C 2xD HSS-E-TiN for VA steels M8

Blind hole screw tap M DIN 371 40° shape C 2xD HSS-E-TiN for VA steels M8
Item no: 1014447 105

Online price:

Available for immediate delivery

Application
- Metric thread
- Blind holes
- Max. drilling depth 2xD
- VA steels up to 1,200 N/mm²

Execution
  • Improved wear characteristics thanks to TiN coating
  • Tolerance field 6H
  • DIN 371
  • Right-hand spiral flute approx. 40°
  • DIN chamfer shape C (2-3 turns)
  • HSS-E, TiN-coated


Brand: LIZZARD
Material to be processed: Stainless steel
Thread type x nominal diameter: M8
Max. thread depth: 2xD
Thread dimension: M8
Pitch: 1,25 mm
Cutting material: HSSE
Surface: TiN
Hole type: Blind hole ≤ 2xD
Tolerance of screw taps (Tol.): 6H
Lead angle shape: C
Length: 90 mm
Cutting edge length: 13 mm
Core hole diameter: 6,80 mm
Shank diameter: 8 mm
Shank square: 6,2 mm
Thread type: Metric thread
Twist angle: 40° (right)
DIN: 371
Coolant supply: External
Nominal diameter: 8 mm
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting

Versions
loading
Keywords:

[Text nicht gefunden]

  • Blind hole screw tap M DIN 371 40° shape C 2xD HSS-E-TiN for VA steels M5
  •
    Blind hole screw tap M DIN 371 40° shape C 2xD HSS-E-TiN for VA steels M6
  •

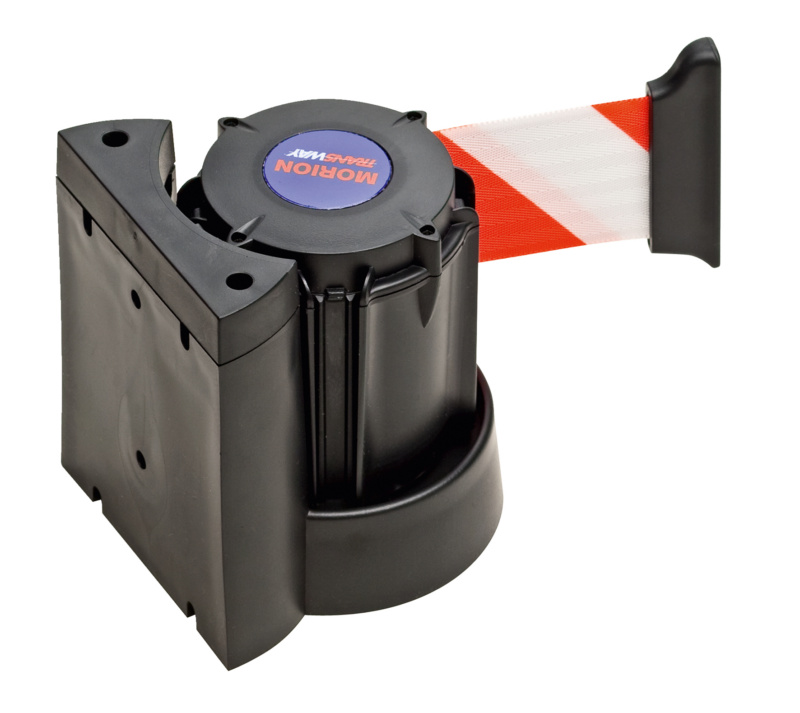

    Wall-mounted belt screw on red/white belt width 50 mm belt length 3 m
  •
